Galaxy GX4-8 UV System 8 LPM

SKU: UV-GX4-8
Galaxy UV 4.1 Series Ultraviolet Disinfection System to treat flows from 8 Lpm through to 15 Lpm. Visual and Audible display with lamp life counter. Grade 304 Stainless Steel with 1/2-Inch (15mm) female inlet and outlet connections - Non monitored

Advanced features and benefits include:

  • Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
  • Galaxy 4.1 Series Splash-Proof Controller with visual and audible lamp alarm
  • Now with integral Lamp Life display
Sale price
$430.10
In stock
Standard Shipping - Free
Road Delivery (2-5 Days)

Galaxy UV GX4-8 Residential UV Disinfection System treats flow rates from 8 Lpm through to 15 Lpm.



Looking for a powerful, compact undersink UV system for treating rainwater for drinking purposes? The GX4-8 delivers up to 15 Litres per minute and can be connected to either a mixer tap or separate filter tap.

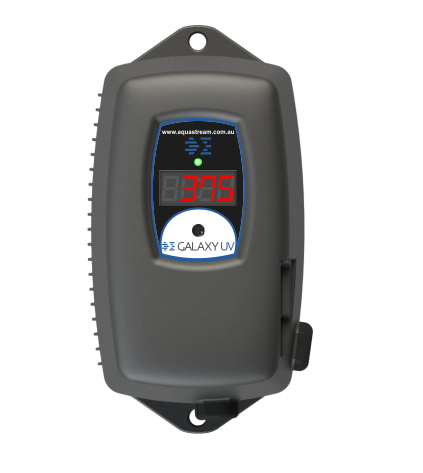

Powered by the new Galaxy 4.1 series controller including both audible and visual lamp lamp life display showing lamp counter and total running time, the constant current electronic power source is protected by a splash-proof case.

The robust 304 stainless steel reactors are polished inside and out, ensuring optimum disinfection performance and corrosion resistance.

Reliable, proven, high-quality UV Lamps are coated to ensure a consistent output over their 9,000 hour lamp life.



Order Code
Port Size
(Inch)
Flow Rate
@ 30mJ/cm
Flow Rate
@ 16mJ/cm2
UV Lamp
Quartz Sleeve

GX4-8

1/2" Female

8

15

GX-RL-210 GX-RQ-210

Reactor Dimensions6.4 x 26.2 cm

Limited Warranty Statement:
Products manufactured by Aquastream Water Solutions, (GALAXY) are warranted to the original
user only to be free of defects in material and workmanship for a period as specified below. This
warranty only applies to the original purchaser and is not transferable.


UV SYSTEMS
Ten (10) year Limited Warranty on the stainless steel reactors, from the date of original
purchase, or installation (proper documentation required for verification).


ELECTRONICS
Three (3) year Limited Warranty on the ballasts and controllers, from the date of original purchase, or installation (proper documentation required for verification).


UV LAMPS, UV SENSORS & QUARTZ SLEEVES
One (1) year Limited Warranty on all GALAXY ultraviolet lamps, UV sensors and quartz sleeves from the date of original purchase, or installation (proper  documentation required for verification).

Advanced features and benefits include:

  • Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
  • Galaxy 4.1 Series Splash-Proof Controller with visual and audible lamp alarm
  • Now with integral Lamp Life display
SKU UV-GX4-8
Model # GX4-8
Brand Galaxy UV
Shipping Weight 1.0000kg
