Aquastream Size 5 Polypropylene Bag Filter Housing

SKU: FBH-AX100B
Polypropylene X100 Bag Housings are ideal for light-commercial applications for bulk particulate removal. Ideal for rainwater treatment systems. Polypropylene construction with 2" BSP-F Inlet/Outlet. Suits flow rates up to 220 LPM

Features and Benefits

  • Light-weight, durable and UV-resistant
  • Full Polypropylene construction
  • High flow-rates up to 220 LPM
  • Bag elements available from 1 - 800 Microns
  • 2" BSP-F threaded inlet and outlet connections
  • Plastic support legs included
Sale price
$891.00
In Stock
Australia Post - Free
Parcel Post (3-7 Business Days)
Standard Shipping - Free
Road Delivery (3-5 Business Days)

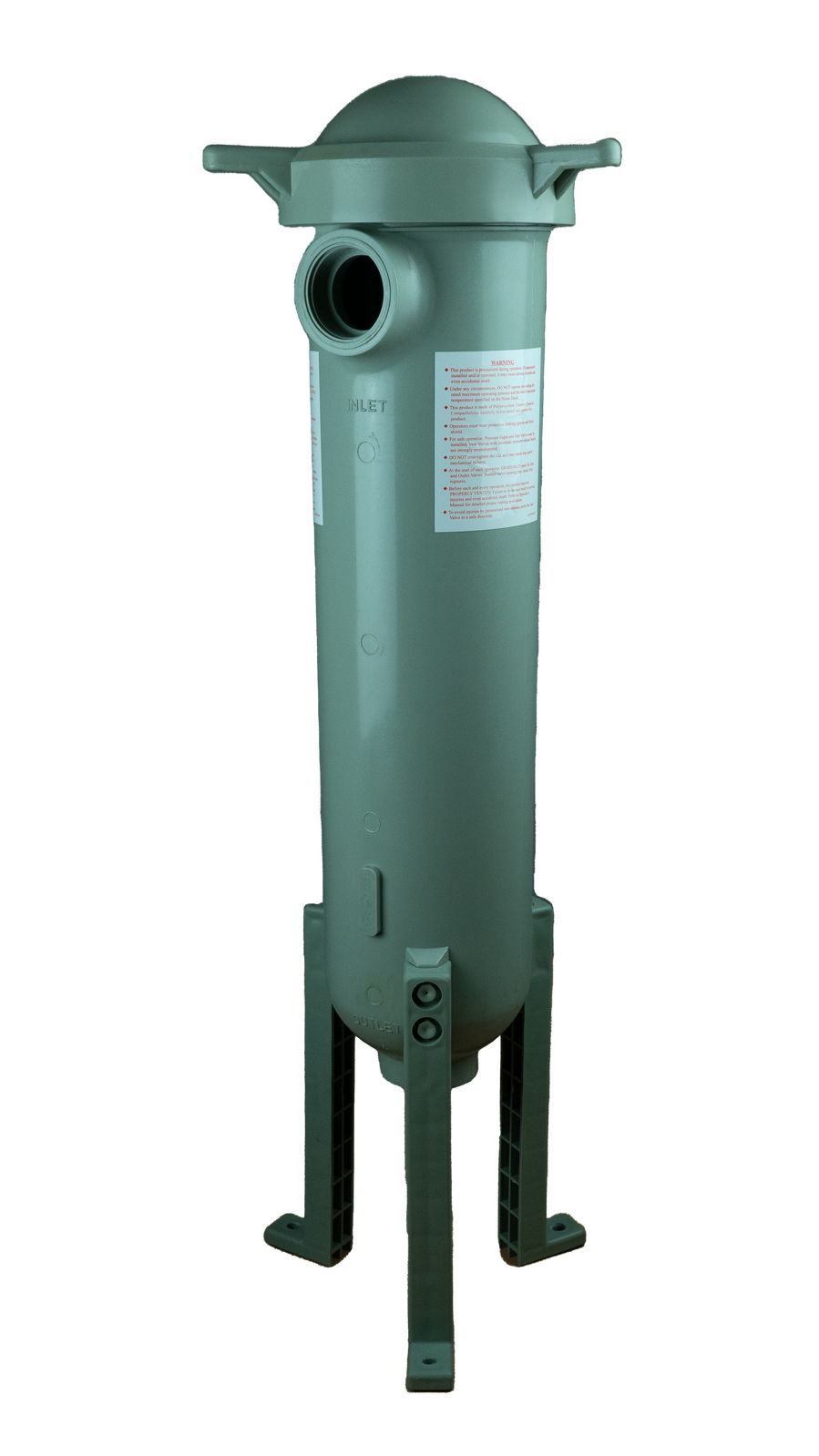

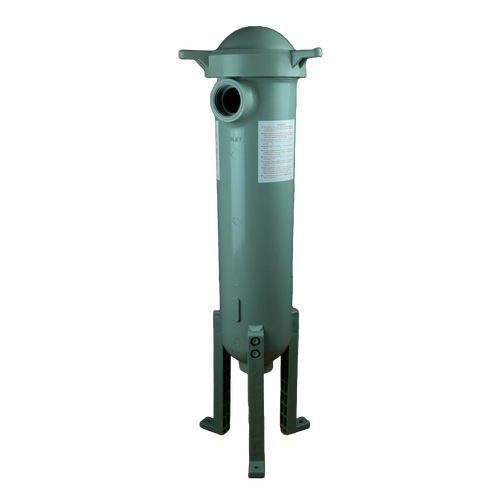

The X100B Polypropylene Bag Filter Housing is ideal for rainwater and light-commercial applications for reduction of sediments in the water supply.

Light-weight and chemical resistant, this versatile housing is manufactured from UV-resistant polypropylene and offer an economical housing to suit a range of applications.

Each system includes plastic housing support legs for simple mounting of the system to the floor.

With inlet and outlet ports of 2" BSP-F (50mm), flow rates of up to 220 litres/minute can be achived depending on the bag rating. Water enters the housing from the side (top) and exits through the bottom of the housing.

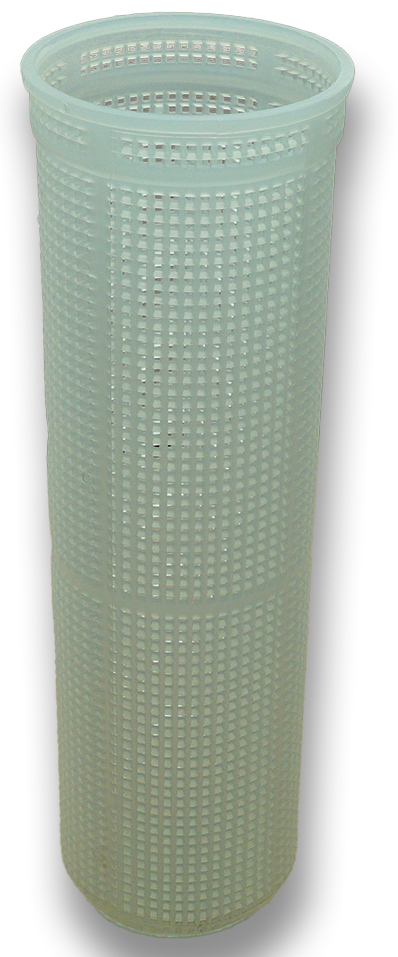

X100 Bag elements are available in polypropylene from 1 micron up to 300 micron performance and the nylon bag series offers ratings up to 800 microns.

Is this housing equivalent to the Pall / FSI X100 Bag Filter Housings?

The Aquastream X100 version is almost identical, and are commonly installed in place of the Pall/FSI housings.
Please see below comparison table:

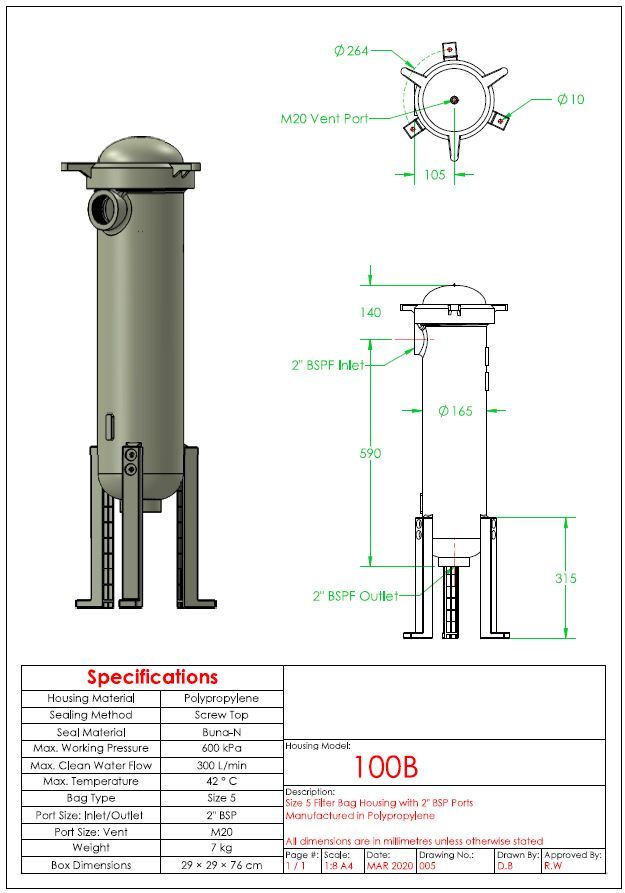

  Pall / FSI X100 Housing Aquastream X100 Housing
Housing Material Polypropylene Polypropylene
Bag Type X100 (Also known as Size 5) X100 (Also known as Size 5)
Max. Working Pressure 600 kPa (700kPa pre 2017) 600 kPa
Max. Clean Water Flow 300L/min 300L/min
Port Location Side Entry/Bottom Outlet Same Location as Pall/FSI
Port Size: Inlet/Outlet 2" (50mm) BSP-F 2" (50mm) BSP-F
Max Temperature 43°C 42°C



Looking for filter bags to suit the X100B Bag Housing?

Polypropylene Bags - 1µm to 200µm





Features and Benefits

  • Light-weight, durable and UV-resistant
  • Full Polypropylene construction
  • High flow-rates up to 220 LPM
  • Bag elements available from 1 - 800 Microns
  • 2" BSP-F threaded inlet and outlet connections
  • Plastic support legs included
SKU FBH-AX100B
Model # X100B
Barcode # 9352837001479
Brand Aquastream
Shipping Weight 1.0000kg
Assembled Height 0.700m
Assembled Width 0.300m
