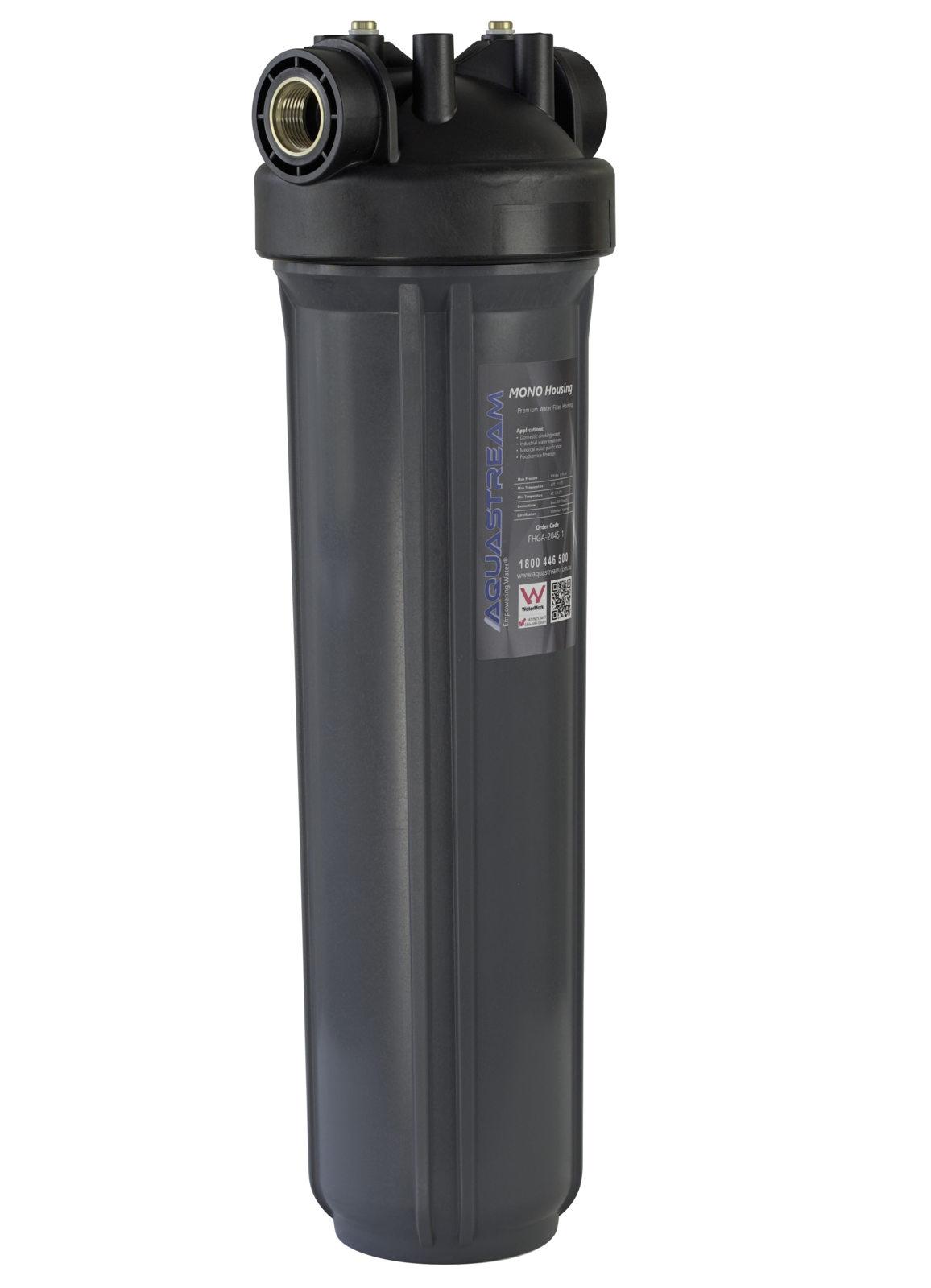

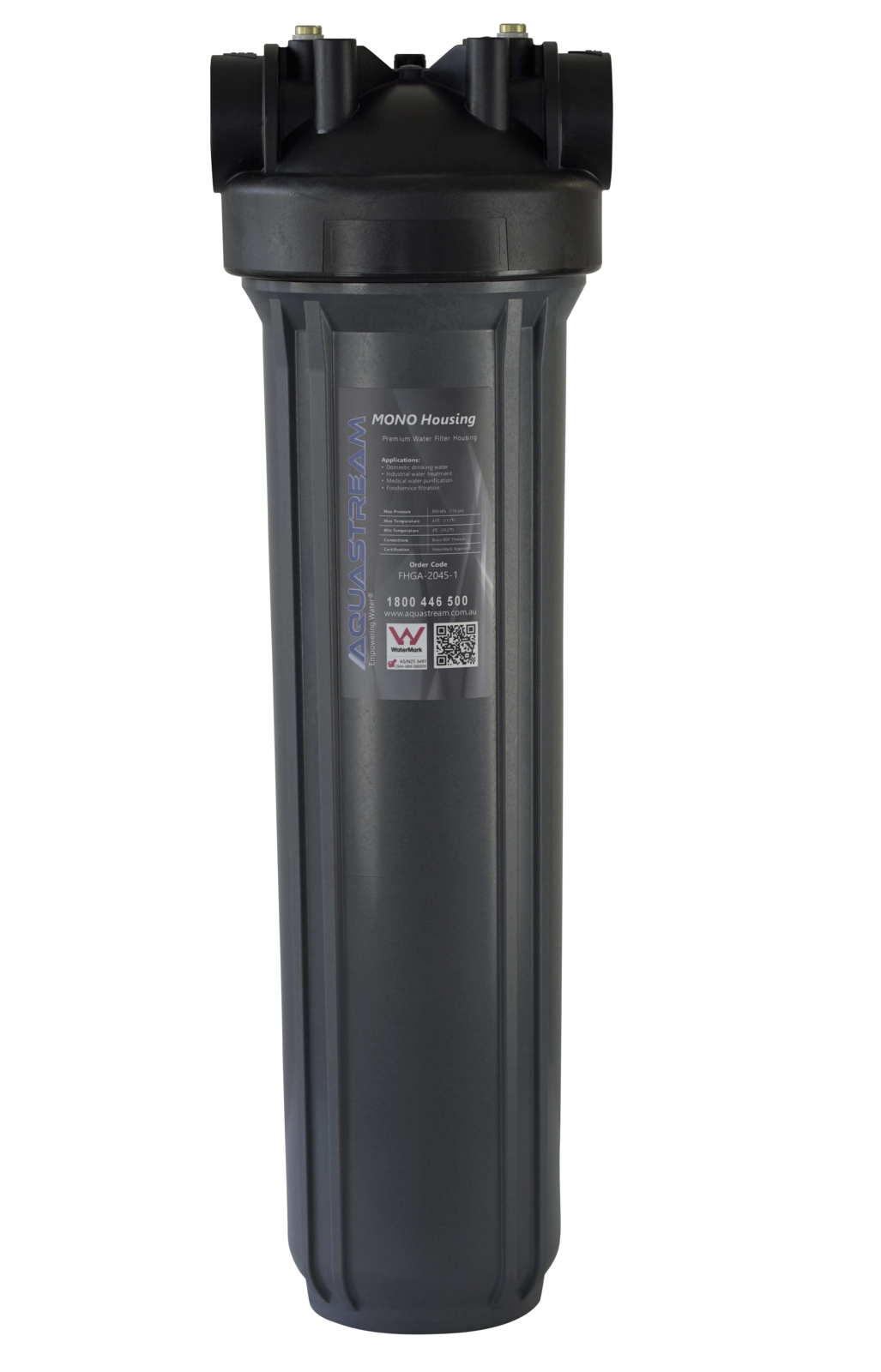

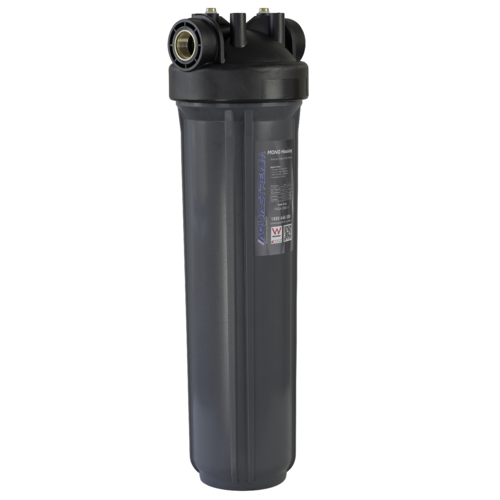

Aquastream 20" Mono Hi-Flow Water Filter Housing System
- Robust reinforced polypropylene construction
- Brass threaded 25mm connections
- Pressure gauge and air-release ports
- Flow rates up to 90 Litres/minute
Aquastream 20" Mono Hi-Flow Water Filter Housing Systems treat flow rates up to 90 litres/min and are ideal for foodservice and commercial applications.
Moulded from reinforced polypropylene, this housing system is suitable for drinking water, foodservice and water treatment applications and are WaterMark approved for compliance in Australia.

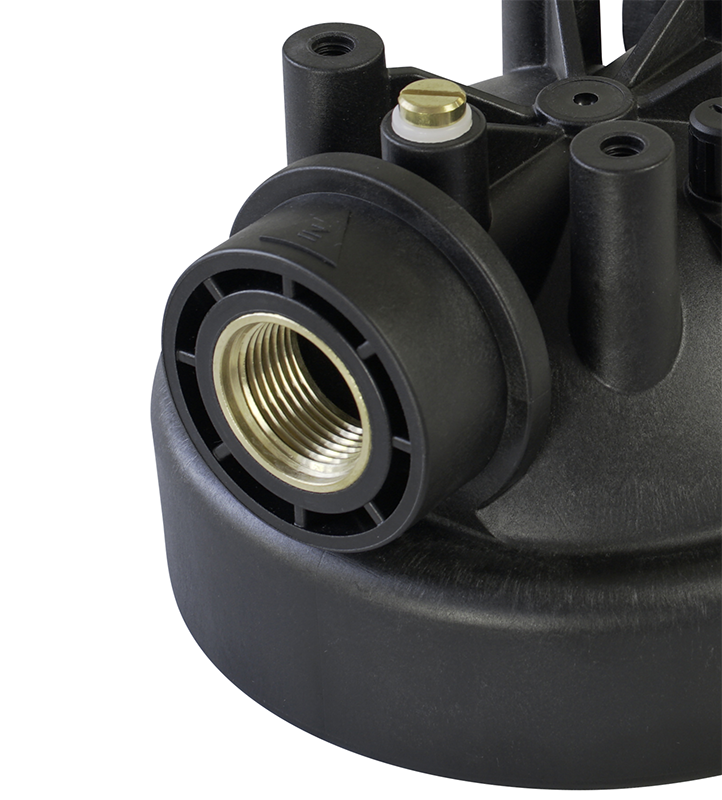

Brass threaded ports are supplied standard to provide a strong plumbing connection to the housing system, reducing the chance of cross-threading which is a common issue with plastic threaded housings.
Each housing is optioned with four 1/8" pressure gauge ports supplied standard with brass port plugs if not required by your application.

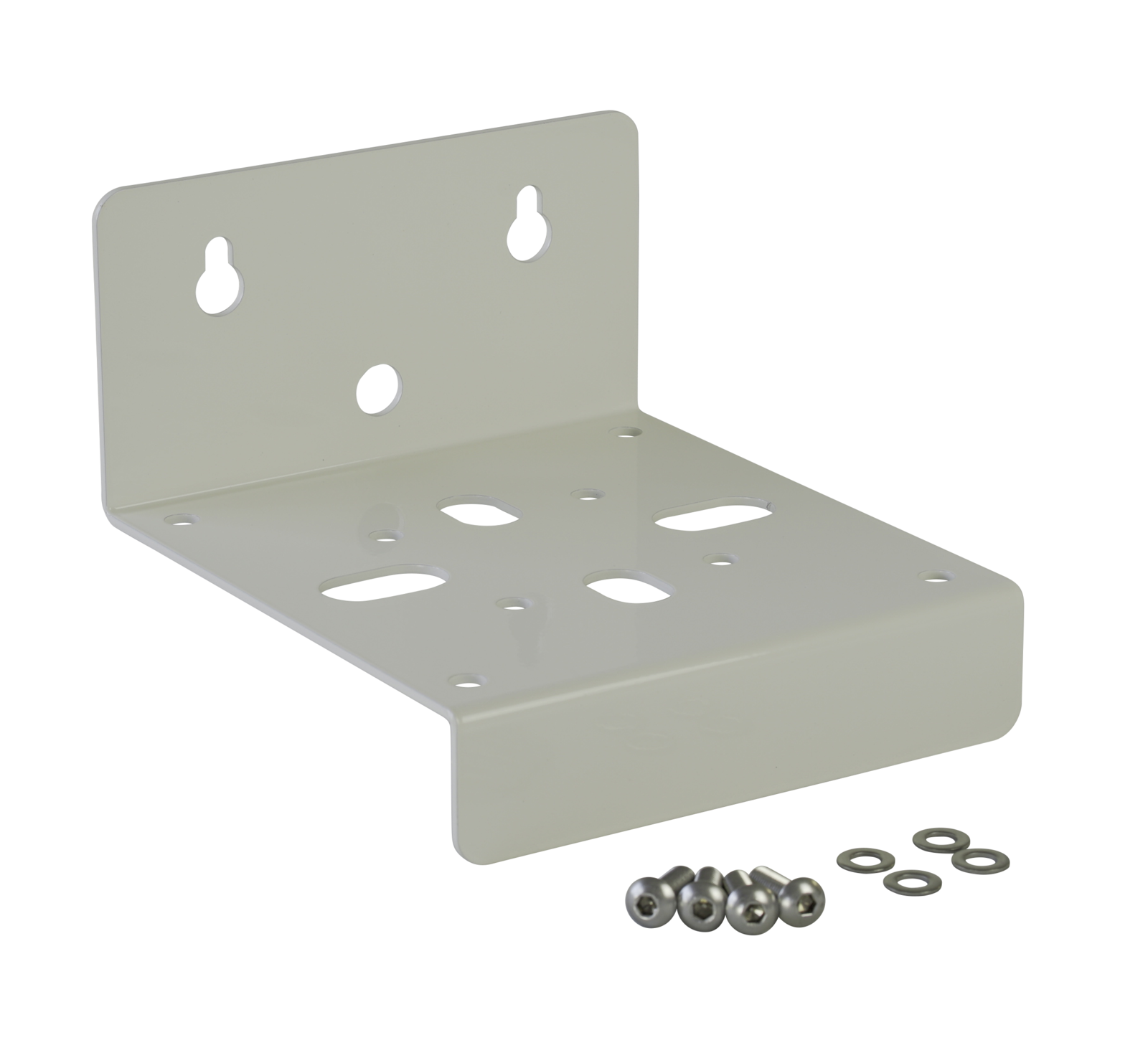

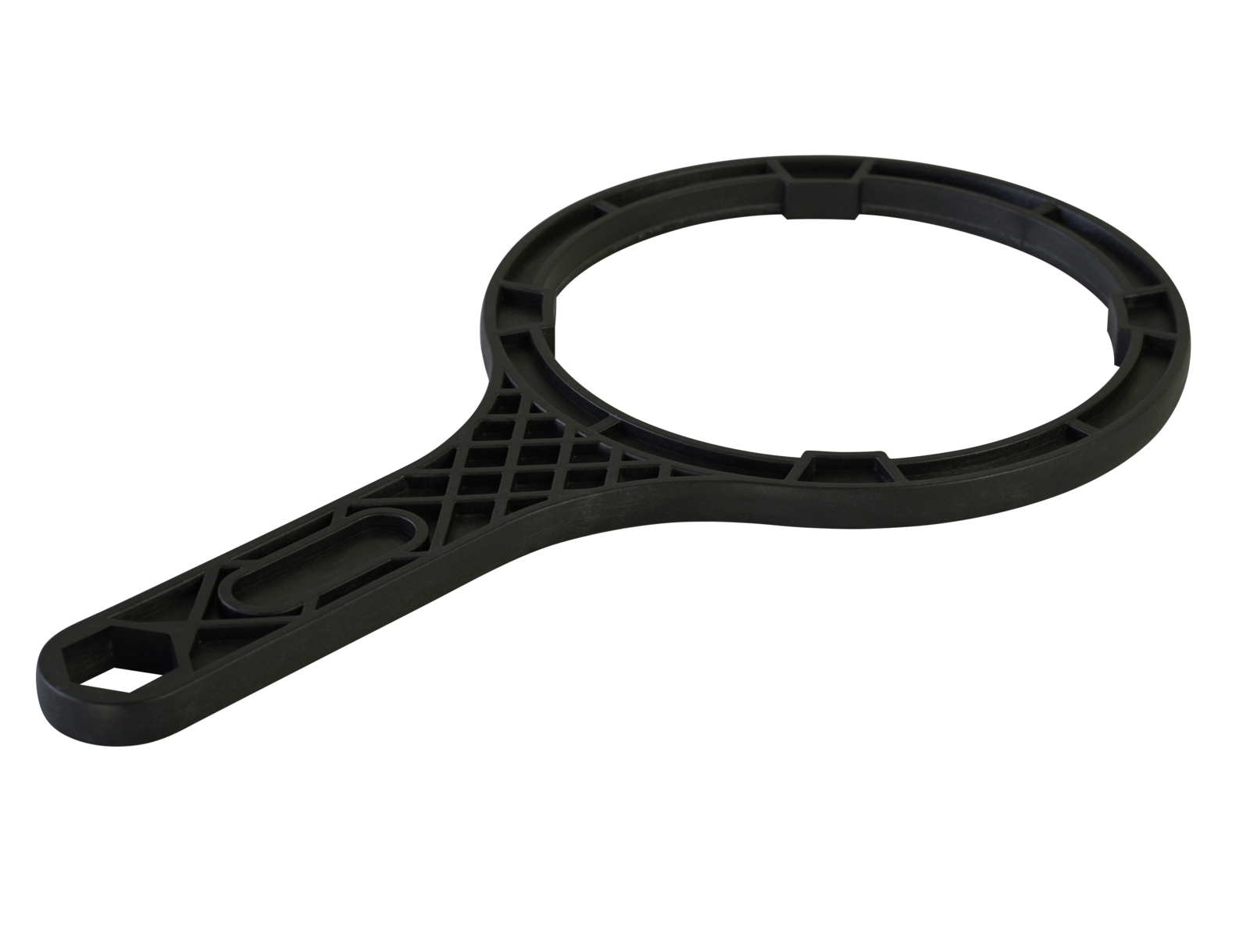

This housing system includes a sturdy powdercoated wallmount bracket and housing spanner.
Suitable for use with 20" long 4.5" diameter water filter cartridges, these housings can be used for sediment reduction, chlorine and chemical protection and specialty applications and are readily available throughout Australian resellers.
Max Working Pressure: 8 Bar (116 PSI)
Max Working Temp: 45 C
Min Working Temp: 4 C
Inlet/Outlet Size: 25mm (1" BSP)
Pressure Release: Air release included
Gauge Ports: 2 included
