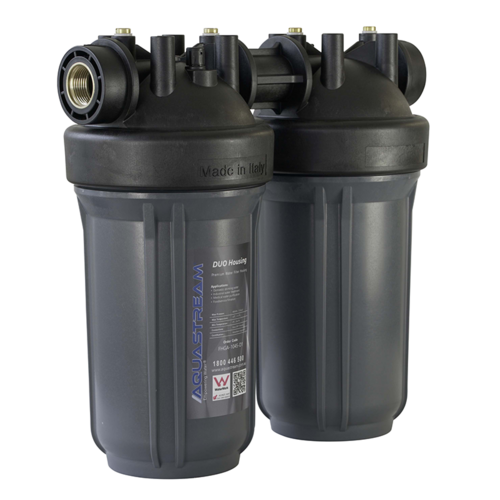

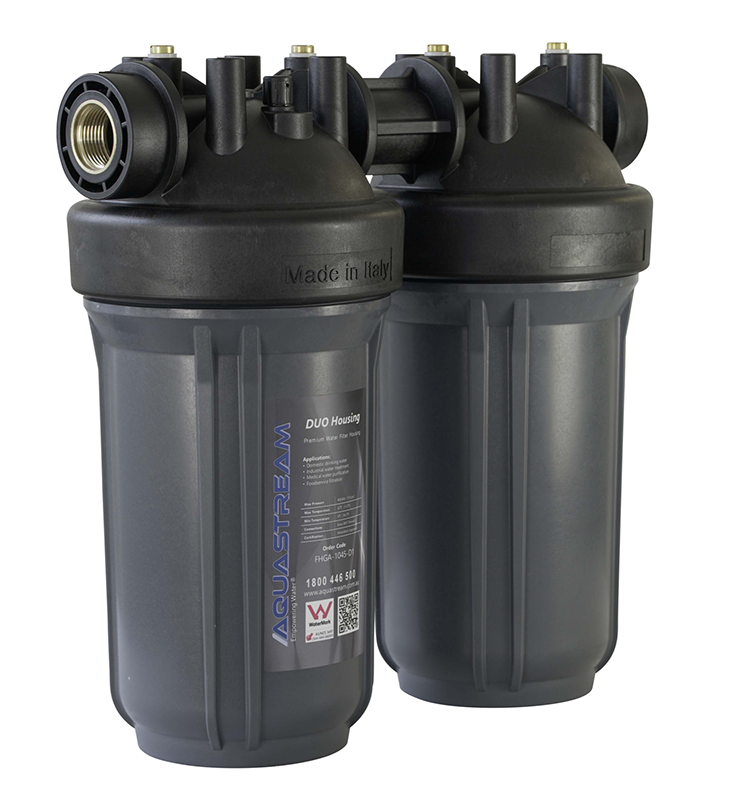

Aquastream 10" Duo Hi-Flow Water Filter Housing Kit
- Unique one-piece Duo head design
- Brass threaded 25mm connections
- Pressure gauge and air-release ports
- Flow rates up to 70 Litres/minute
Aquastream Duo 10" Hi-Flow Water Filter Housing Systems are ideal for commercial, foodservice and residential filtration applications requiring high flow filtration.
Moulded from reinforced polypropylene, this housing system is suitable for drinking water, foodservice and water treatment applications and are WaterMark approved for compliance in Australia.

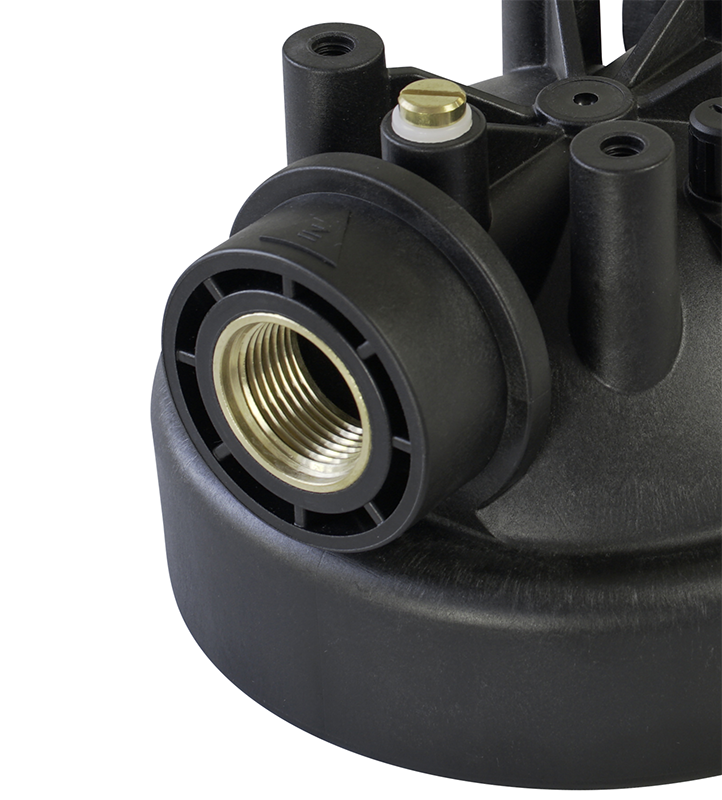

Brass threaded ports are supplied standard to provide a strong plumbing connection to the housing system, reducing the chance of cross-threading which is a common issue with plastic threaded housings.

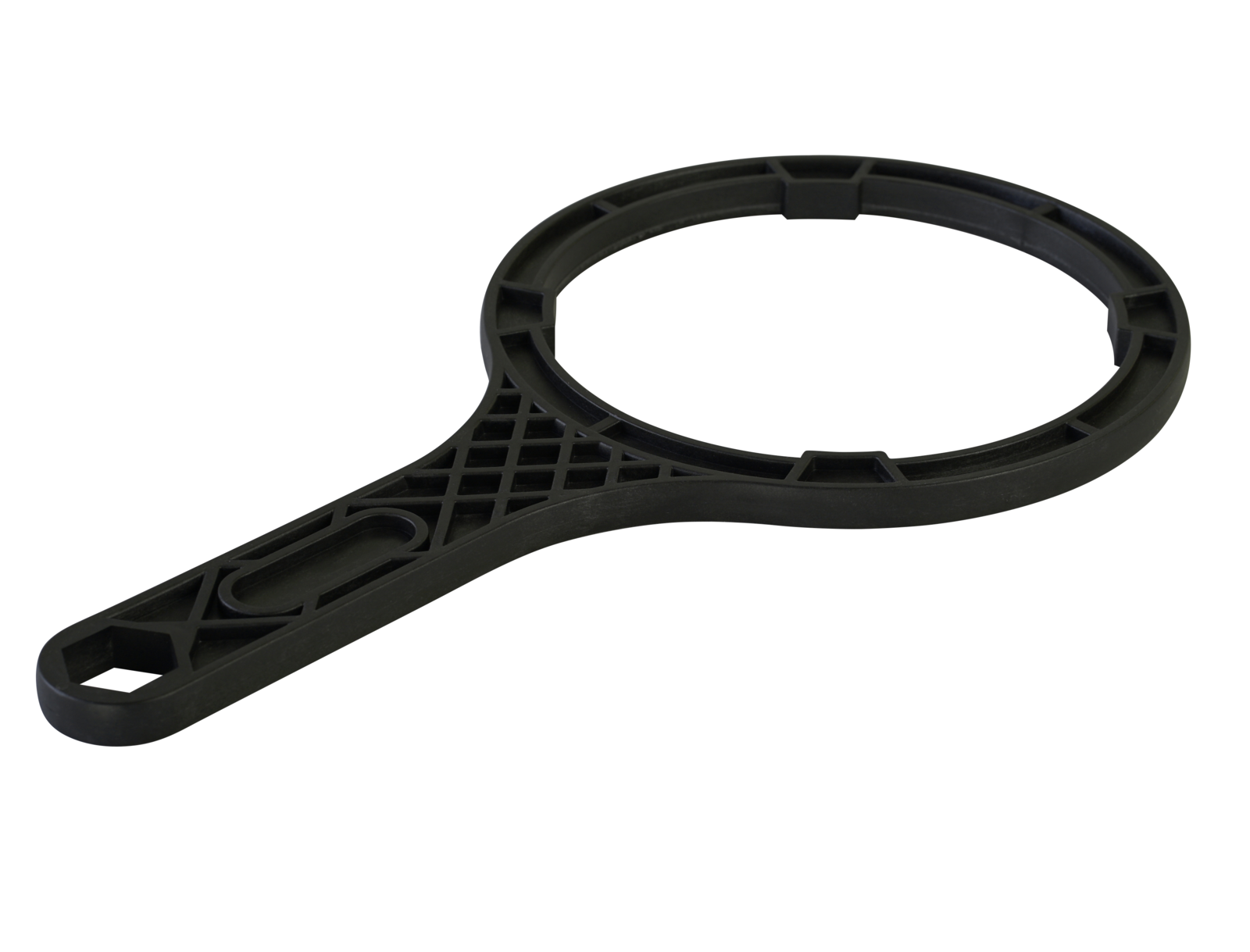

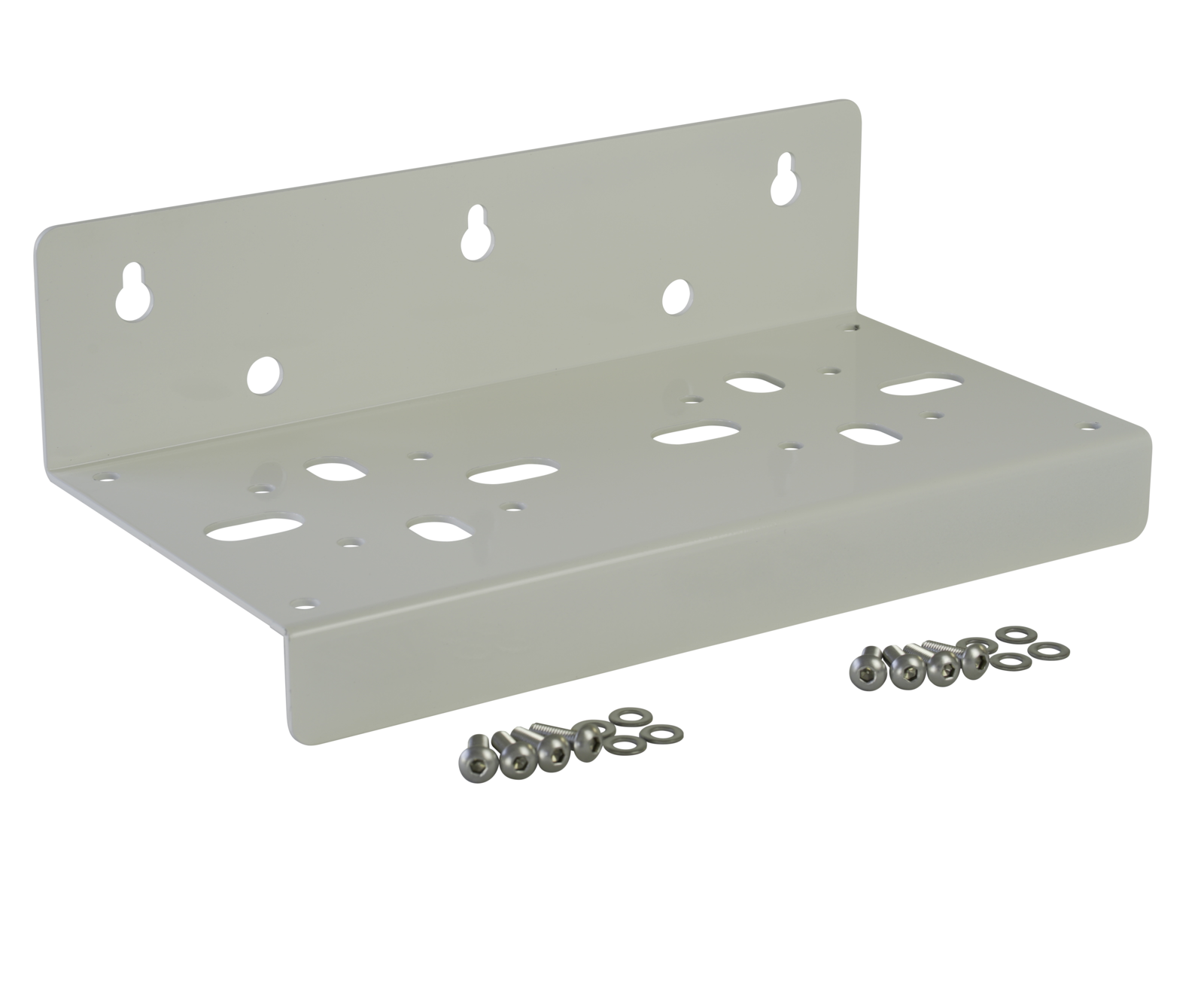

The unique one-piece head design ensures an absolute protection from leads between the housing and is supplied standard with a sturdy powdercoated wall mounting bracket and housing spanner.
Each housing is optioned with four 1/8" pressure gauge ports supplied standard with brass port plugs if not required by your application.
Suitable for use with 10" long 4.5" diameter water filter cartridges, these housings can be used for sediment reduction, chlorine and chemical protection and specialty applications and are readily available throughout Australian resellers.
Max Working Pressure: 8 Bar (116 PSI)
Max Working Temp: 45 C
Min Working Temp: 4 C
Inlet/Outlet Size: 25mm (1" BSP)
Pressure Release: Air release included
Gauge Ports: 4 included
