GALAXY GX4-11 UV System 11 LPM

SKU: UV-GX4-11
GALAXY ECO GX4-11 Ultraviolet Disinfection System to treat flows from 9.1 Lpm through to 23 Lpm. Visual and Audible display with lamp life counter. Grade 304 Stainless Steel with 1/2-Inch (15mm) male inlet and outlet connections - Non monitored.

Advanced features and benefits include:

  • Ideal for treating flowrates from 9.1 up to 23 Litres/minute
  • Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
  • 4.1 Series Splash-Proof Controller with visual and audible lamp alarm
  • Now with integral Lamp Life display
Sale price
$550.00
In Stock
Australia Post - Free
Parcel Post (3-7 Business Days)
Standard Shipping - Free
Road Delivery (3-5 Business Days)

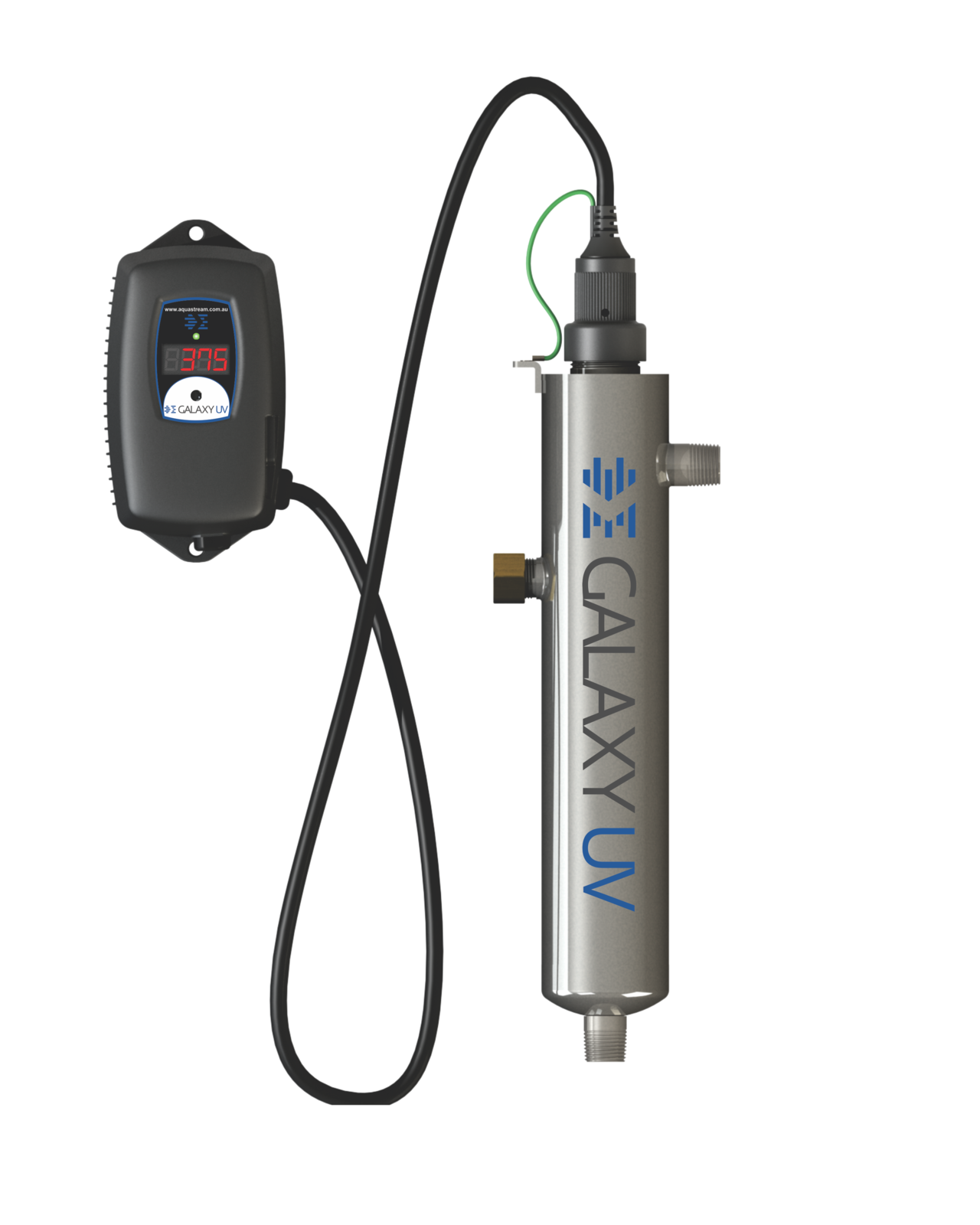

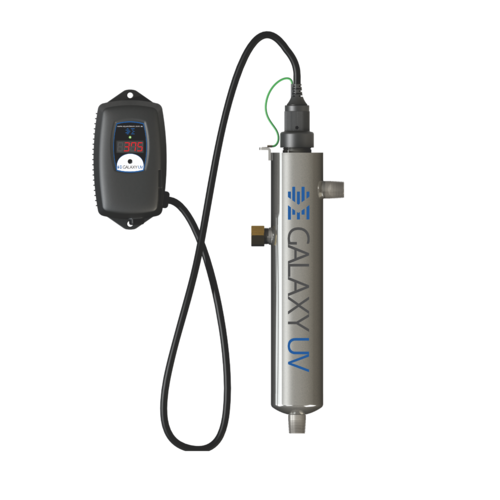

GALAXY Eco Series GX4-11 Ultraviolet Disinfection System is ideal for undersink installations and treats flow rates from 9.1 Lpm through to 23 Litres/minute

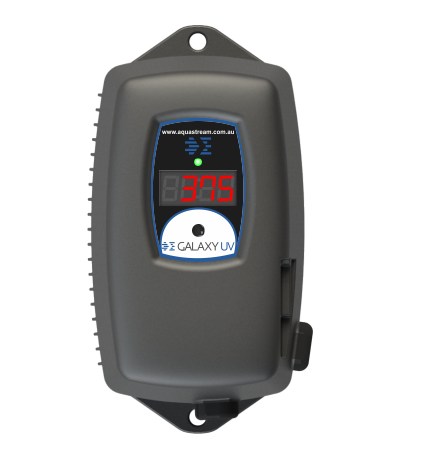

Powered by the new GALAXY 4.1 series controller including both audible and visual lamp lamp life display showing lamp counter and total running time, the constant current electronic power source is protected by a splash-proof case.

The robust 304 stainless steel reactors are polished inside and out, ensuring optimum disinfection performance and corrosion resistance.

Reliable, proven, high-quality UV Lamps are coated to ensure a consistent output over their 9,000 hour lamp life.



Order Code
Port Size
(Inch)
Flow Rate
@ 30mJ/cm
Flow Rate
@ 16mJ/cm2
UV Lamp
Quartz

UV-GX4-11

1/2" Male

11

23

GX-RL-290 GX-RQ-290

Reactor Dimensions: 6.4 x 36.4 cm

Limited Warranty Statement:
Products manufactured by Aquastream Water Solutions, (GALAXY) are warranted to the original
user only to be free of defects in material and workmanship for a period as specified below. This
warranty only applies to the original purchaser and is not transferable.


UV SYSTEMS
Ten (10) year Limited Warranty on the stainless steel reactors, from the date of original
purchase, or installation (proper documentation required for verification).


ELECTRONICS
Three (3) year Limited Warranty on the ballasts and controllers, from the date of original purchase, or installation (proper documentation required for verification).


UV LAMPS, UV SENSORS & QUARTZ SLEEVES
One (1) year Limited Warranty on all GALAXY ultraviolet lamps, UV sensors and quartz sleeves from the date of original purchase, or installation (proper  documentation required for verification).

Advanced features and benefits include:

  • Ideal for treating flowrates from 9.1 up to 23 Litres/minute
  • Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
  • 4.1 Series Splash-Proof Controller with visual and audible lamp alarm
  • Now with integral Lamp Life display
SKU UV-GX4-11
Model # GX4-11
Barcode # 9352837020036
Brand Galaxy UV
Shipping Weight 1.0000kg
