GALAXY GX4-79 UV Disinfection System 79 LPM

SKU: UV-GX4-79

GALAXY ECO 4.1 Series Ultraviolet Disinfection System to treat flows from 79 Lpm through to 150 Lpm. Visual and Audible display with lamp life counter. Grade 304 Stainless Steel with 1-Inch (25mm) female inlet and outlet connections - Non monitored.

Advanced features and benefits include:

Ideal for treating flowrates from 59 up to 150 Litres/minute
Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
4.1 Series Splash-Proof Controller with visual and audible lamp alarm
Now with integral Lamp Life display

$1,149.50

In stock

Standard Shipping - Free

Road Delivery (5-7 Business Days)

Description

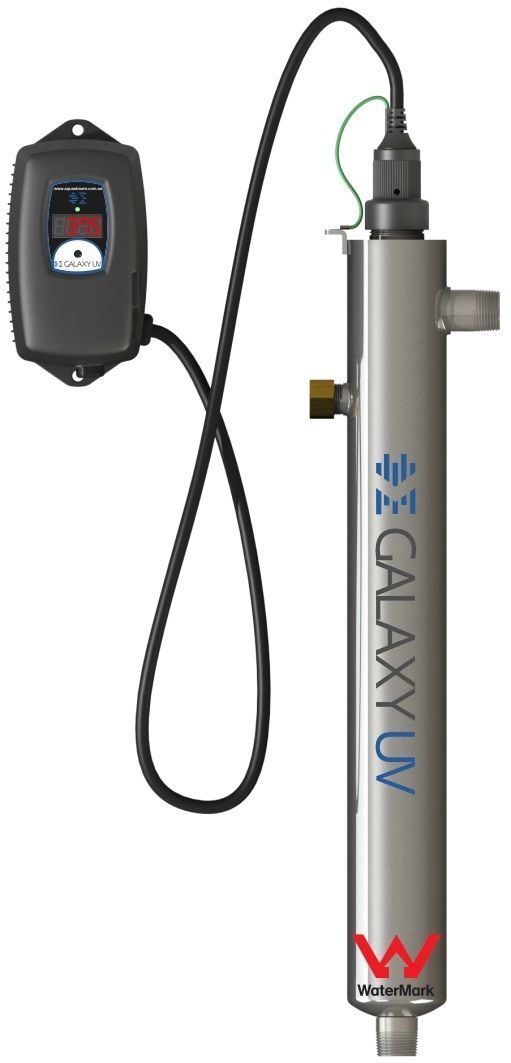

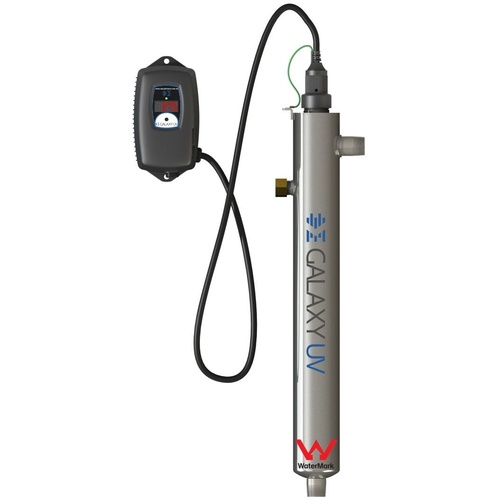

GALAXY Eco Series GX4-79 Ultraviolet Disinfection System treats flow rates from 59 Lpm through to 150 Lpm.

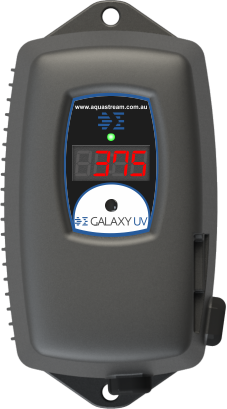

Powered by the new GALAXY 4.1 series controller including both audible and visual lamp lamp life display showing lamp counter and total running time, the constant current electronic power source is protected by a splash-proof case.

The robust 304 stainless steel reactors are polished inside and out, ensuring optimum disinfection performance and corrosion resistance.

Reliable, proven, high-quality UV Lamps are coated to ensure a consistent output over their 9,000 hour lamp life.

This UV system is frequently used in medium-large homes, treating enough water for up to 8 or more people.

Order Code	Port Size (Inch)	Flow Rate @ 30mJ/cm	Flow Rate @ 16mJ/cm²	UV Lamp	Quartz
UV-GX4-79	1" Male	79	150	RL-850	RQ-850

Reactor Dimensions: 8.9 x 91.7 cm

Features

Advanced features and benefits include:

Ideal for treating flowrates from 59 up to 150 Litres/minute
Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
4.1 Series Splash-Proof Controller with visual and audible lamp alarm
Now with integral Lamp Life display

Specifications
