Standard 10" Single Stainless 316 Housing 3/4 Inch Ports

$432.30
In Stock

4 payments of $108.08

Buy Now, Pay Later

Advanced Features and Benefits:

  • Full 316 Stainless Steel construction
  • Robust, full-featured housing rated to 21 Bar (300 PSI)
  • High temperature applications up to 93ºC
  • 3/4" (20mm) Threaded ports
  • Suits a wide range of double-open-end cartridges for sediment, carbon and resin types

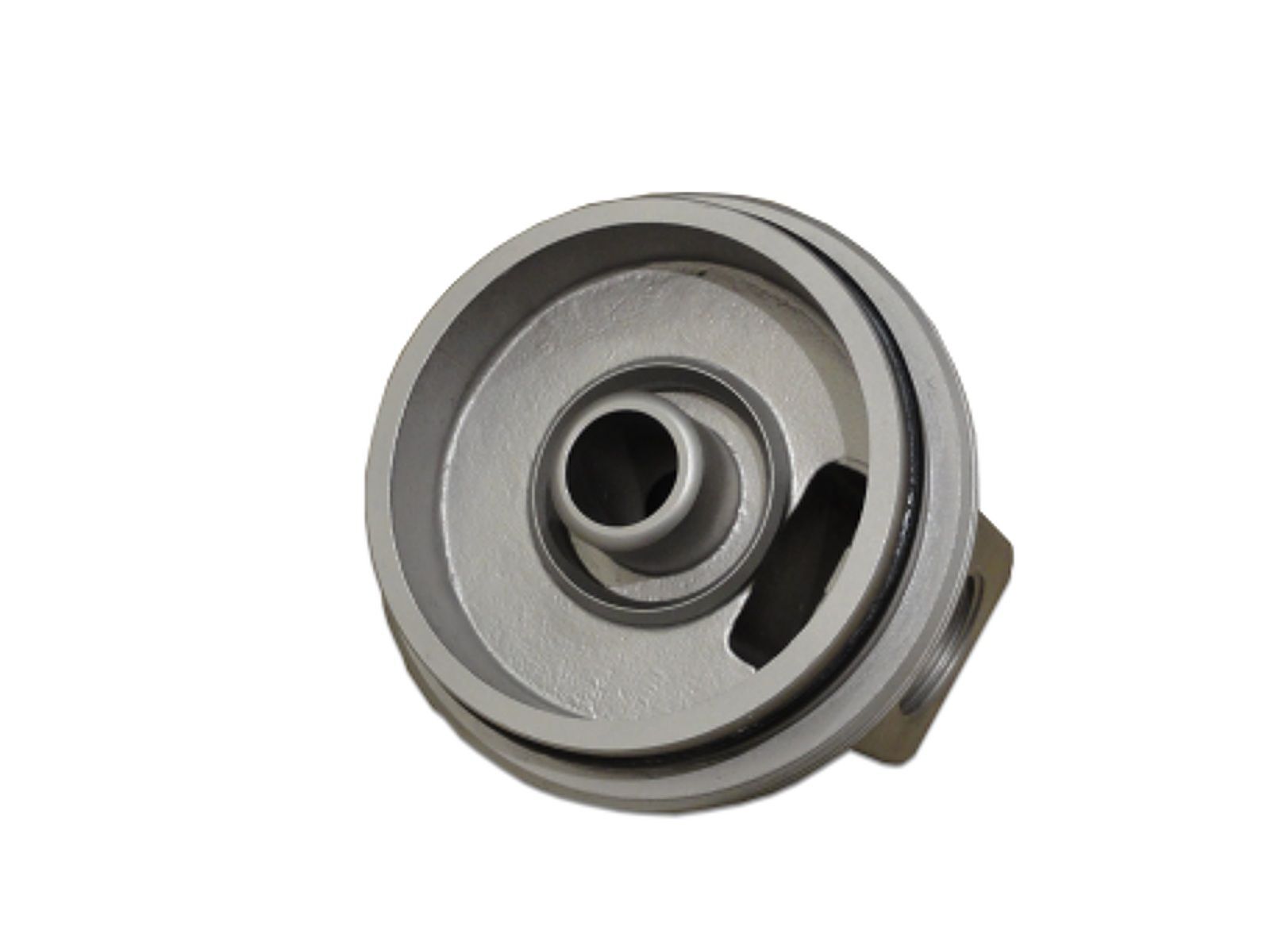

  • Ring-Closure locking system for easy changeout of cartridges

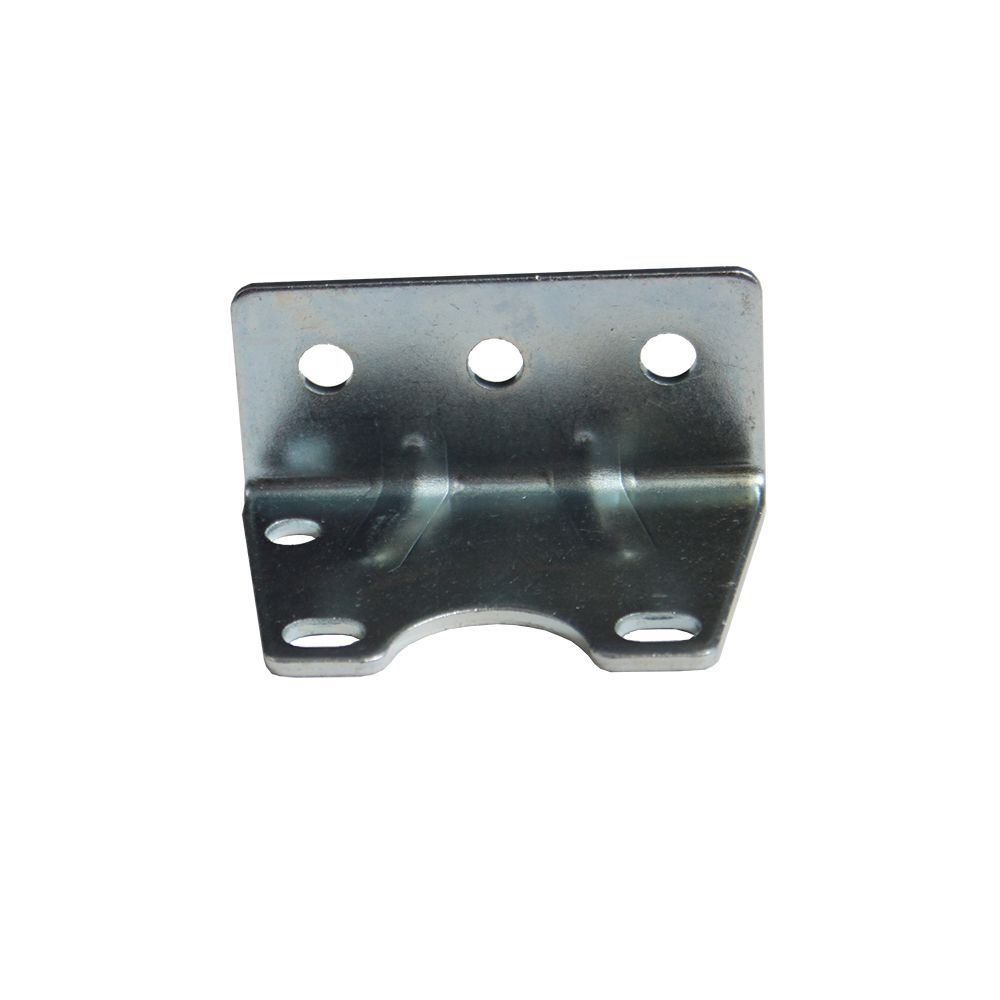

  • Wall bracket kit included


Shipping Options

Standard Shipping - FREE
Road Delivery (2-5 Days)

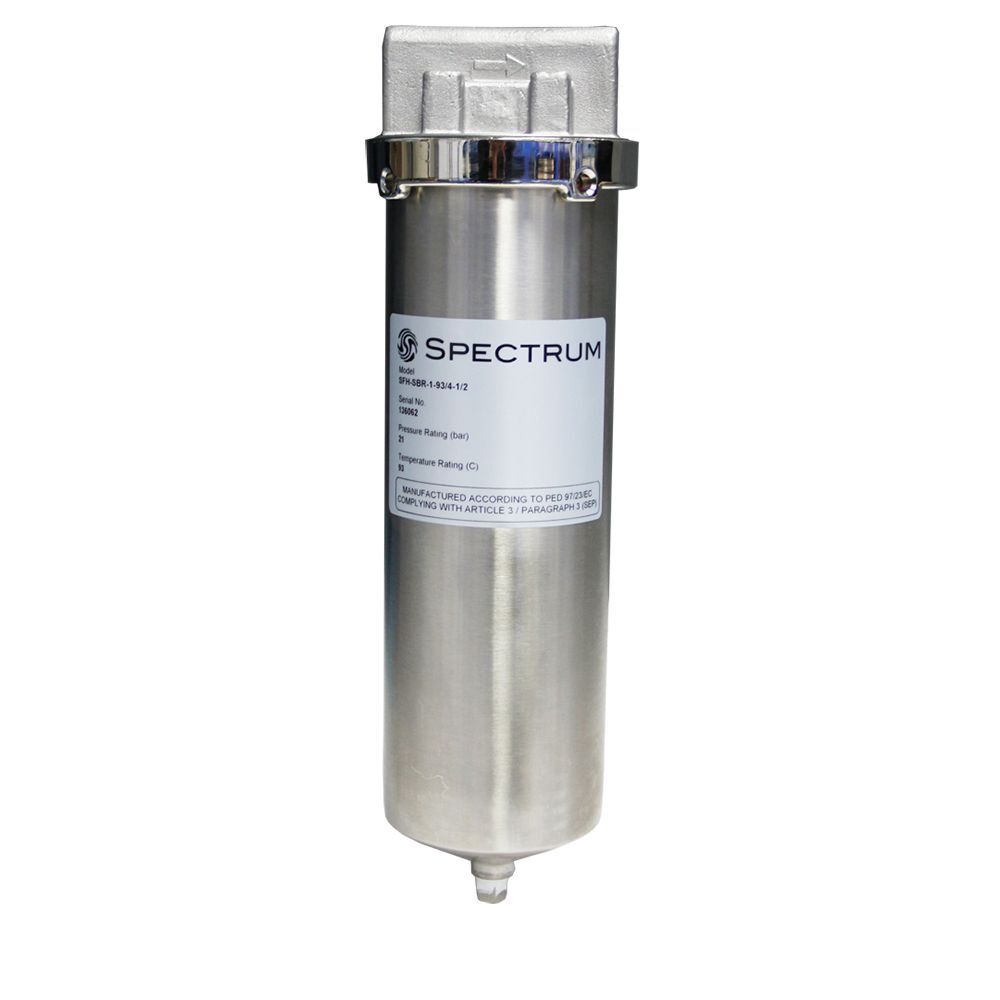

The Spectrum Standard Series 10" Single Stainless Housings are ideal for high pressure and temperature applications. Suits a wide range of 9-3/4" and 10" sediment and carbon cartridges in the DOE format. 3/4" (20mm) threaded ports for easy connection.

Spectrum 10" Standard-Series Single Stainless Housings with 3/4" ports are designed for the toughest liquid environments involving high temperatures, aggressive chemicals and high pressure applications where purity is important.

Constructed in 316 stainless steel, these robust housings utilise the unique ring-closure locking system and suit a wide range of sediment and carbon double-open-end (DOE) cartridges in the 9-3/4" and 10" (248mm - 254mm) length common in Australia. Thanks to the spring-base cartridge seal in the sump, both radial and longitudinal flow cartridges can be used in these housings.

Pressure rated to operate at pressures up to 300 PSI (21 Bar) at a maximum temperature of 93°C makes these housings suitable for a wide range of applications.

Each system incorporates a 1/4" drain port in the sump and a wall-mount bracket and opening rod in the kit.

Housings can be plumbed in series to create a multi-stage filtration system.

(FHGS-1025-34SS)

Product Enquiry Form Complete this form to email us your enquiry about FHGS-1025-34SS.





Be The First To Review This Product!

Help other Aquastream Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Advanced Features and Benefits:

  • Full 316 Stainless Steel construction
  • Robust, full-featured housing rated to 21 Bar (300 PSI)
  • High temperature applications up to 93ºC
  • 3/4" (20mm) Threaded ports
  • Suits a wide range of double-open-end cartridges for sediment, carbon and resin types
  • Ring-Closure locking system for easy changeout of cartridges
  • Wall bracket kit included
SKU FHGS-1025-34SS
Model # FHGS-1025-34SS
Barcode # 9352837001820
Brand Uniflow
Shipping Weight 1.0000kg
Assembled Length 0.150m
Assembled Height 0.300m
Assembled Width 0.150m
