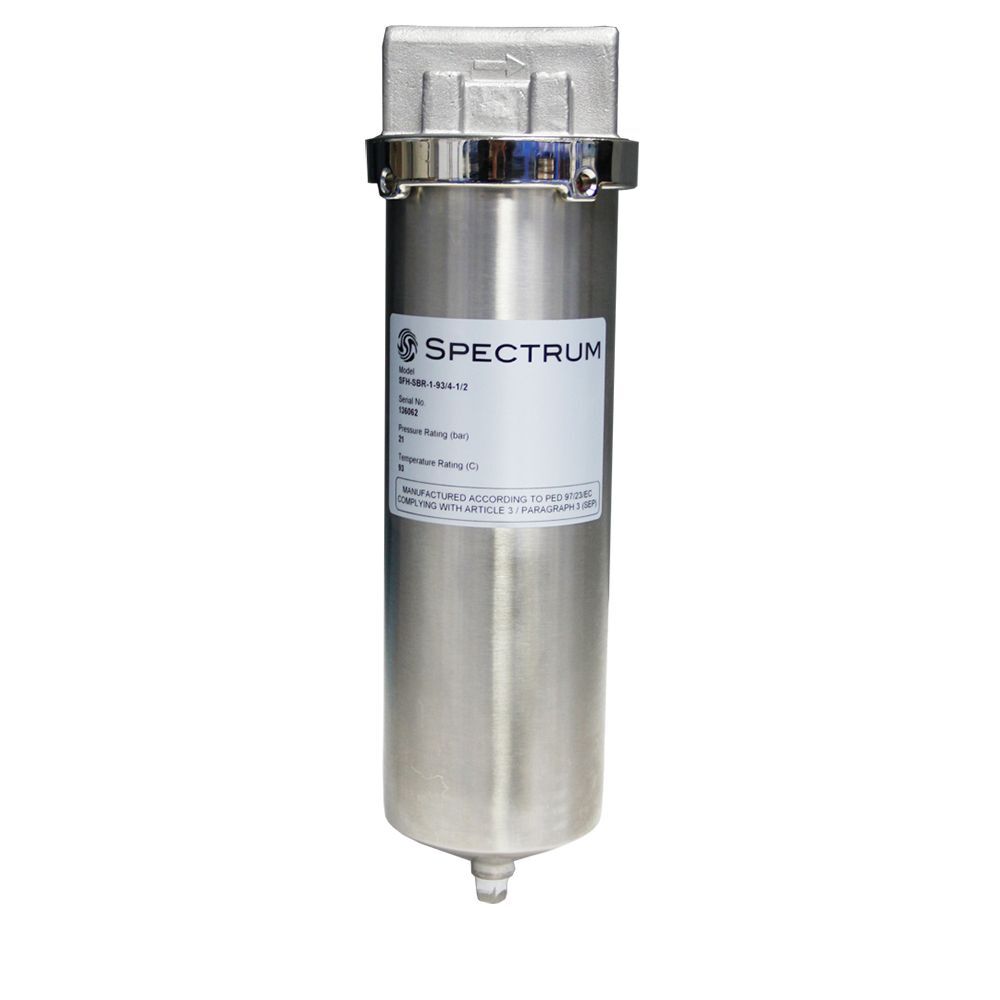

Standard 20" Single Stainless 316 Housing 3/4 Inch Ports

SKU: FHGS-2025-34SS
The Spectrum Standard Series 20" Single 316 Stainless Housings are ideal for high pressure and temperature applications. Suits a wide range of 20" sediment and carbon cartridges in the DOE format. 3/4" (20mm) threaded ports for easy connection.

Advanced Features and Benefits:

  • Full 316 Stainless Steel construction
  • Robust, full-featured housing rated to 21 Bar (300 PSI)
  • High temperature applications up to 93ºC
  • 3/4" (20mm) Threaded ports
  • Suits a wide range of double-open-end cartridges for sediment, carbon and resin types
  • Ring-Closure locking system for easy changeout of cartridges
  • Wall bracket kit included
Sale price
$722.70
In stock
Standard Shipping - Free
Road Delivery (2-5 Days)

Spectrum 20" Standard-Series Single Stainless Housings with 3/4" ports are designed for the toughest liquid environments involving high temperatures, aggressive chemicals and high pressure applications where purity is important.

Constructed in 316 stainless steel, these robust housings utilise the unique ring-closure locking system and suit a wide range of sediment and carbon double-open-end (DOE) cartridges in the 20" (508mm) length common in Australia. Thanks to the spring-base cartridge seal in the sump, both radial and longitudinal flow cartridges can be used in these housings.

Pressure rated to operate at pressures up to 300 PSI (21 Bar) at a maximum temperature of 93°C makes these housings suitable for a wide range of applications.

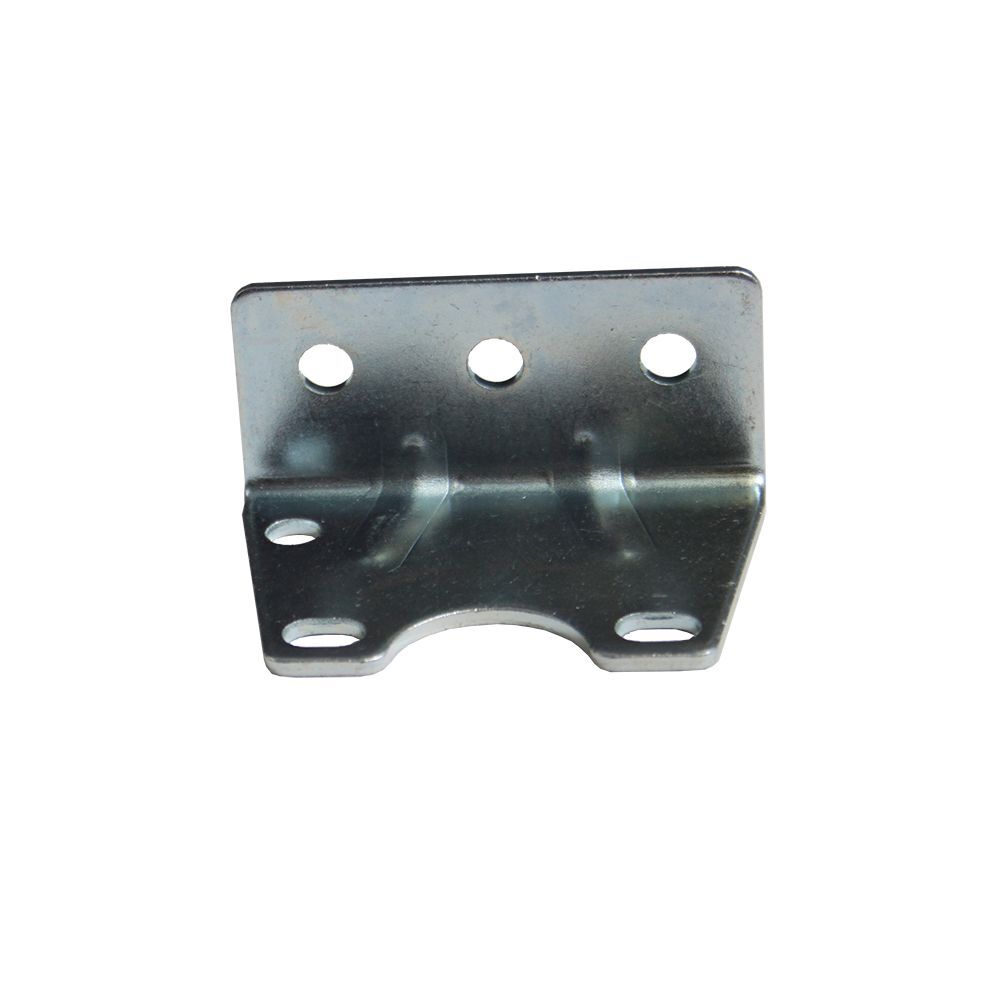

Each system incorporates a 1/4" drain port in the sump and a wall-mount bracket and opening rod in the kit.

Housings can be plumbed in series to create a multi-stage filtration system.

Advanced Features and Benefits:

  • Full 316 Stainless Steel construction
  • Robust, full-featured housing rated to 21 Bar (300 PSI)
  • High temperature applications up to 93ºC
  • 3/4" (20mm) Threaded ports
  • Suits a wide range of double-open-end cartridges for sediment, carbon and resin types
  • Ring-Closure locking system for easy changeout of cartridges
  • Wall bracket kit included
SKU FHGS-2025-34SS
Model # FHGS-2025-34SS
Barcode # 9352837001837
Brand Uniflow
Shipping Weight 1.0000kg
Assembled Height 0.611m
Assembled Width 0.108m
