GALAXY PRO GX5-79 UV System 79 LPM

SKU: UV-GX5-79

GALAXY PRO 5.1 Series Ultraviolet Disinfection System to treat flows from 59 Lpm through to 150 Lpm. Advanced colour display for easy system checking. Grade 304 Stainless Steel with 1-Inch (25mm) inlet and outlet connections - Non monitored.

Advanced features and benefits include:

Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life

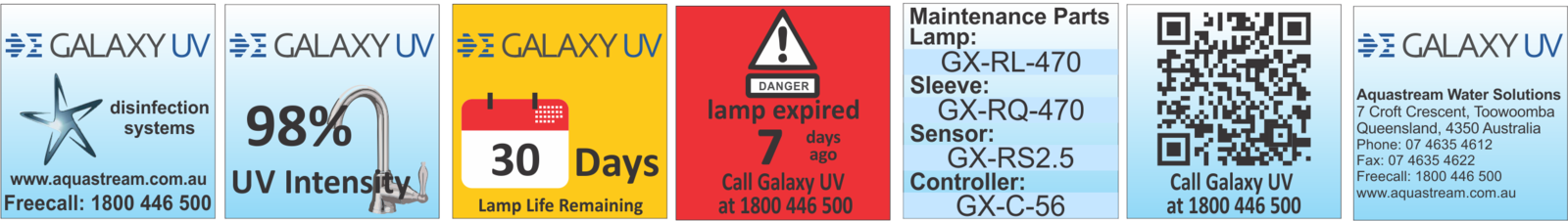

New 5.1 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
Infinite-Expandability-Port for future upgrades and options
Sensor port for future upgradeability - Includes visual glow plug

$1,214.40

In Stock

Australia Post - Free

Parcel Post (3-7 Business Days)

Standard Shipping - Free

Road Delivery (3-5 Business Days)

Description

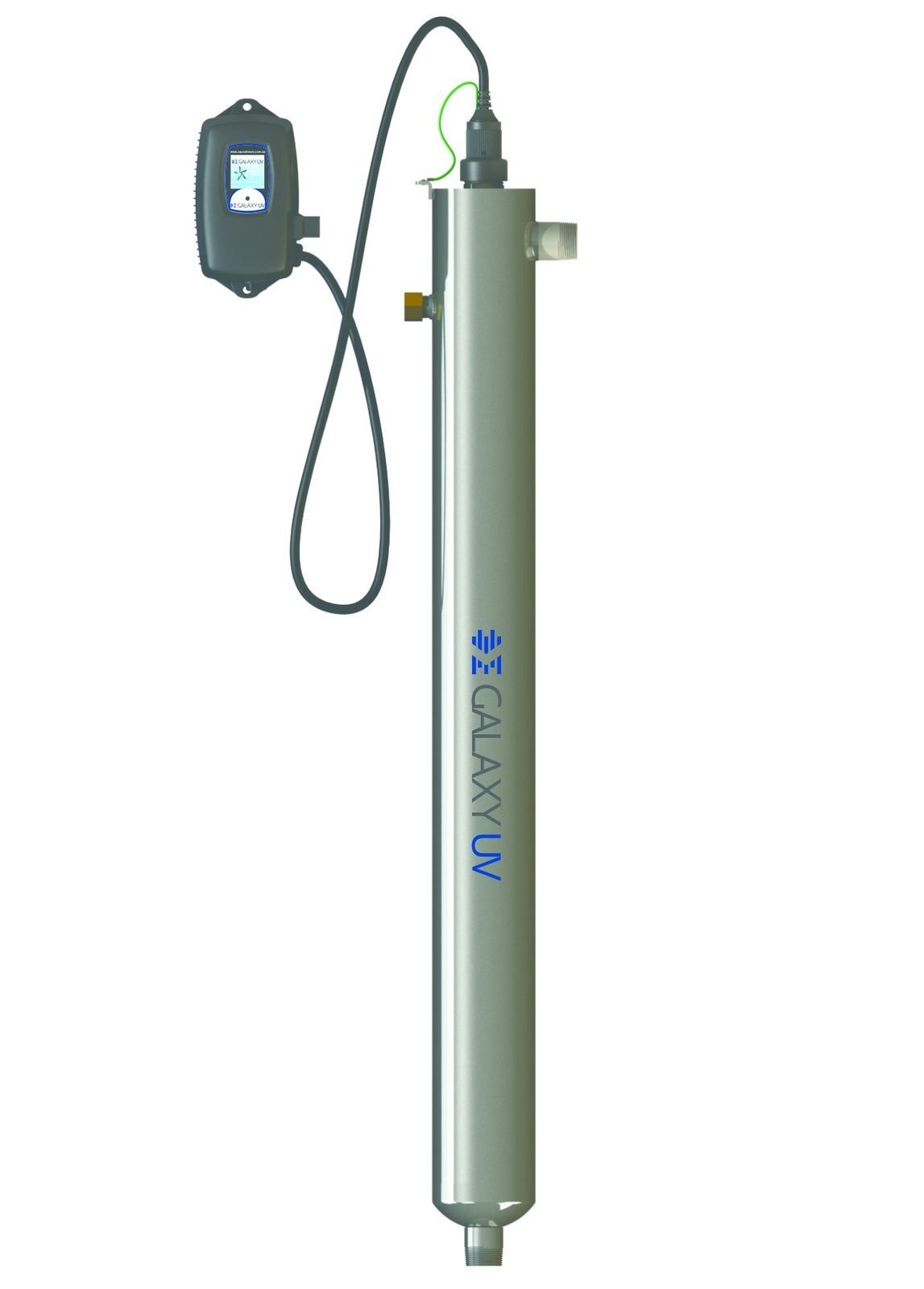

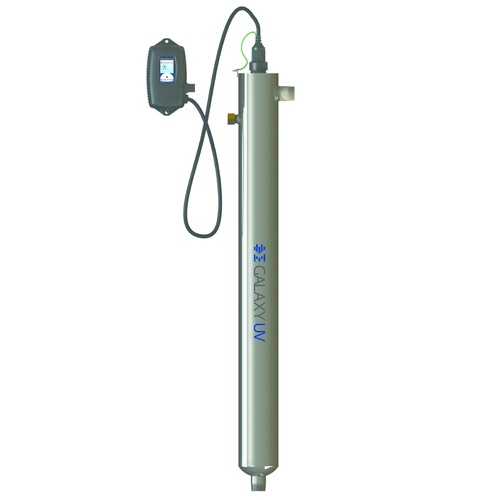

GALAXY PRO Series GX5-79 Ultraviolet Disinfection System treats flow rates from 79 Lpm through to 150 Lpm.

GALAXY^5.1 PRO Series UV Disnfection systems stand out in the Australian market as truly unique.

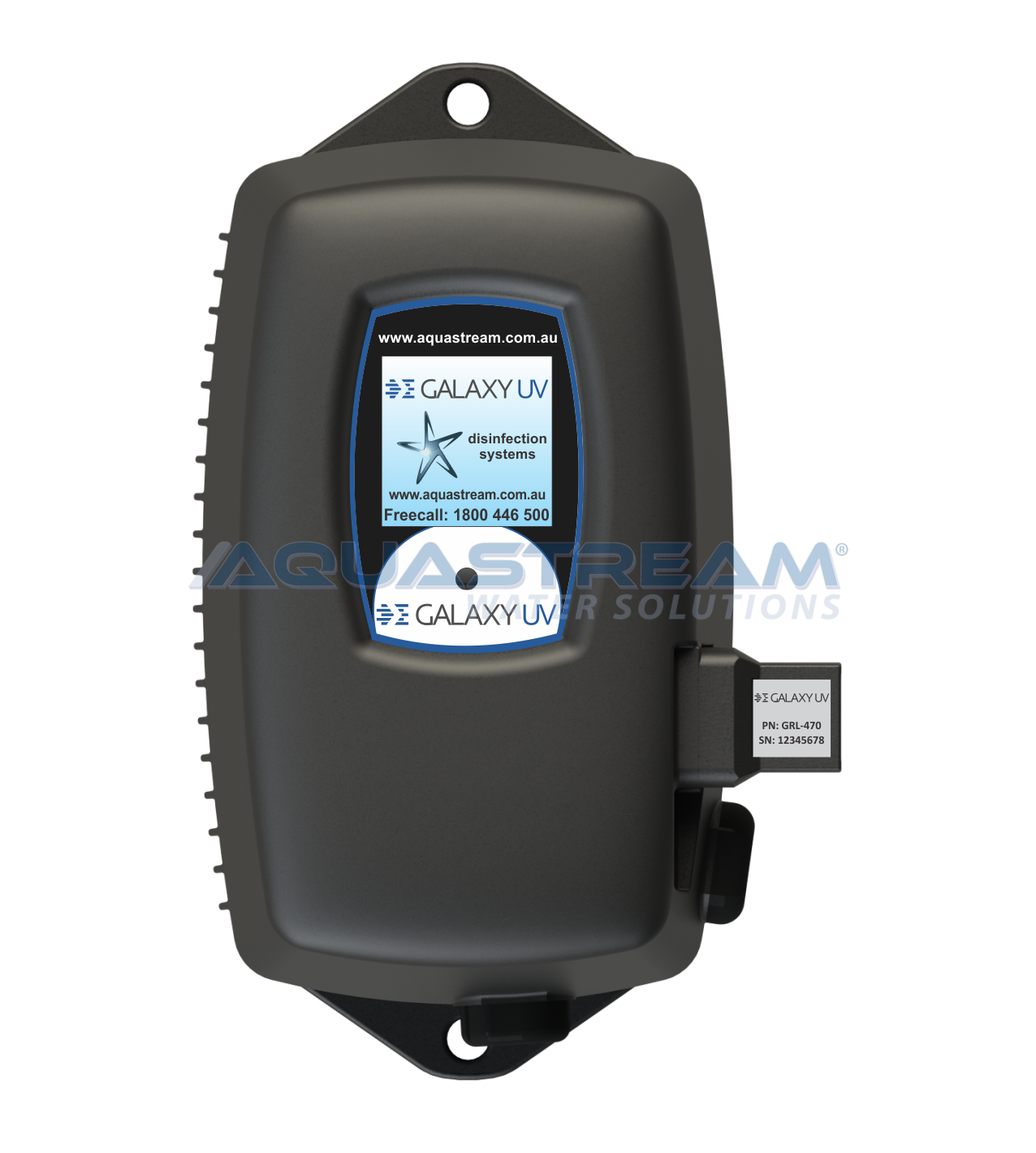

Powered by state-of-the-art 5.1 series controller with colour user interface for easy system checks, this constant current electronic power source is protected by a splash-proff case and incorporates an expandability port for future upgrades and options.

The robust 304 stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.

Reliable, proven, high-quality UV Lamps are coated to ensure a consistent output over their 9,000 hour lamp life.

This UV system is frequently used in medium-large homes, treating enough water for up to 8 or more people.

Order Code	Port Size (Inch)	Flow Rate @ 30mJ/cm	Flow Rate @ 16mJ/cm²	UV Lamp	Quartz
UV-GX5-79	1" Male	79	150	GX-RL-850	GX-RQ-850

Reactor Dimensions: 8.9 x 91.7 cm

Features

Advanced features and benefits include:

Axial flow 304 Stainless Steel reactor for optimum fluid dynamics
Low-pressure coated UV Lamps for consistent UV output throughout 9000 hour lamp life
New 5.1 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
Infinite-Expandability-Port for future upgrades and options
Sensor port for future upgradeability - Includes visual glow plug

Specifications
