GALAXY PRO Series GX5-H150 Compact UV Disinfection System utilises high-output lamps to ensure a smaller footprint and treats flow rates from 120 Lpm through to 180 Lpm
Advanced features of the Compact Series:
- Compact footprint for installation in small areas
- Coated LP-HO UV Lamps with 10,000 hour lamp life
- Stainless Steel 316L reactor chamber for medical and marine applications
- New 5.1 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
- Infinite-Expandability-Port for future upgrades and options

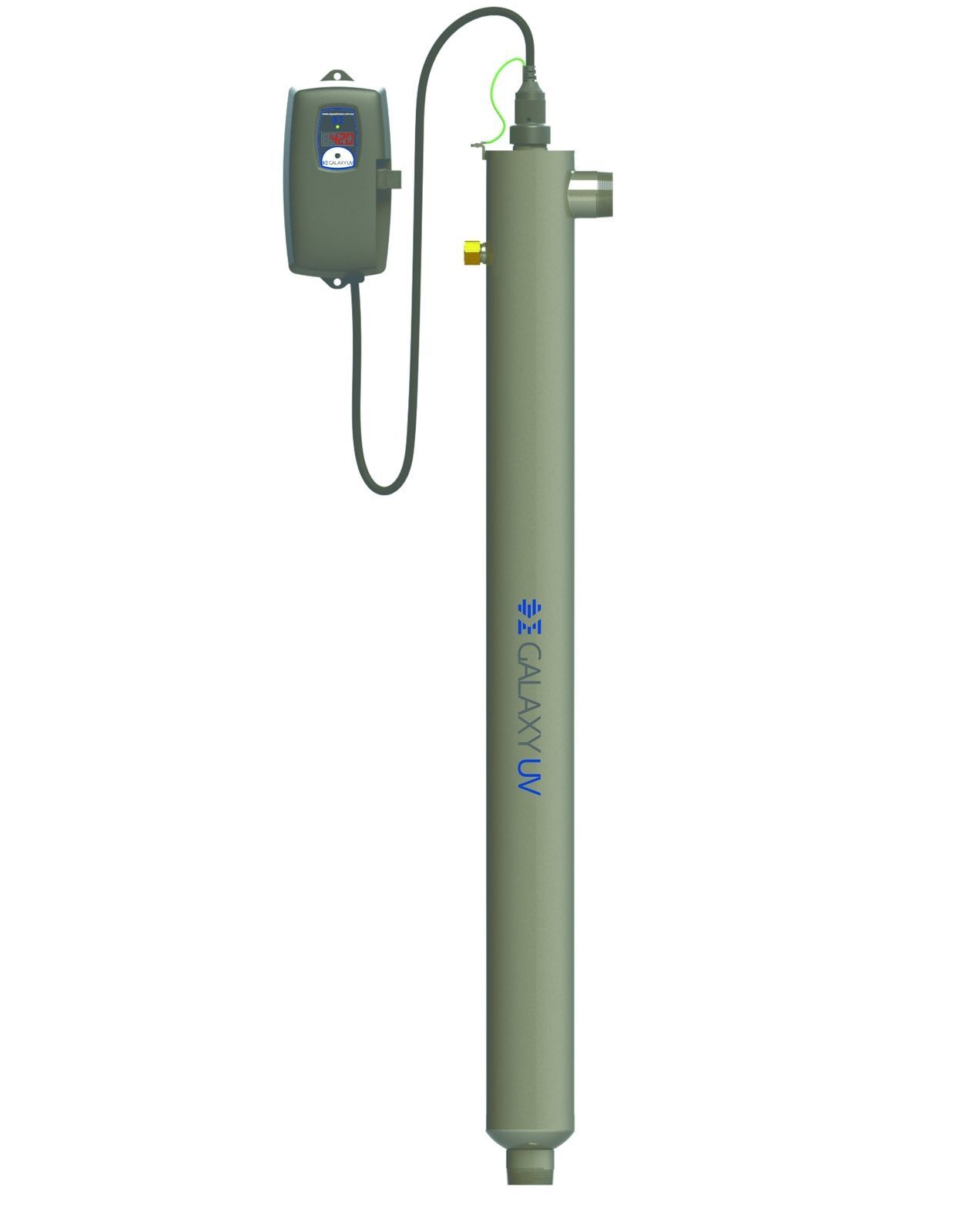

The GALAXY PRO Compact is designed to be compact, ideal for fitting into smaller spaces, built into water treatment cabinets and is only 113cm overall length including the lamp connection.

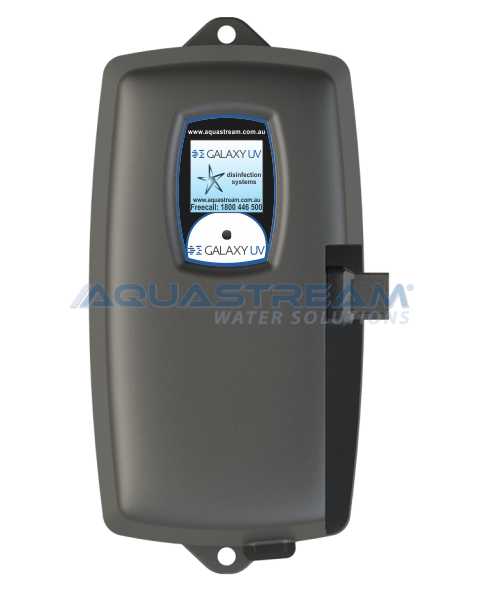

Powered by state-of-the-art 5.1 series controller with colour user interface for easy system checks, this constant current electronic power source is protected by a splash-proof case and incorporates an expandability port for future upgrades and options.
The robust 316L stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.
Reliable, proven, high-quality low pressure, high-output (LP-HO) UV Lamps are coated to ensure a consistent output over their 10,000 hour lamp life.
UV% Monitor
Some critical applications including food and beverage manufacturing may require real-time monitoring of the UV% output of the disinfection system. The GALAXY PRO-HO Series can be upgraded to a fully monitored system by installation of the correct UV Sensor module.
Simple to install, the sensor plugs into the IEP port on the controller and when powered up, the system will automatically recognise and calibrate the sensor.
Safety and BMS Connectivity Modules
The GALAXY PRO Series offers a wide range of modules for integrating the disinfection system into your building management system or treatment equipment. Visit the GALAXY Peripherals section to find out more on Safety Solenoids, 4-20mA output module, ethernet connectivity and more.
Order Code
|
Port Size
(Inch)
|
Flow Rate
@ 30mJ/cm
|
Flow Rate
@ 40mJ/cm2
|
UV Lamp
|
Quartz
|
|
UV-GX5-H150
|
1½" Male
|
150
|
120
|
GX-RL-H950 |
GX-RQ-950 |
Reactor Dimensions: 8.9 x 103.4 cm
