GALAXY PRO GX5-H38 Compact UV System 38 LPM

$1,364.00
In Stock

4 payments of $341.00

Buy Now, Pay Later

Advanced features and benefits include:

  • Axial flow 316 Stainless Steel reactor for optimum fluid dynamics
  • Compact space-saving design ideal for tight spaces
  • Low-pressure High-Output (LP-HO) coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
  • New 5.1 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
  • Infinite-Expandability-Port for future upgrades and options
  • Sensor port for future upgradeability - Includes visual glow plug


Shipping Options

Standard Shipping - Free
Road Delivery (2-5 Days)

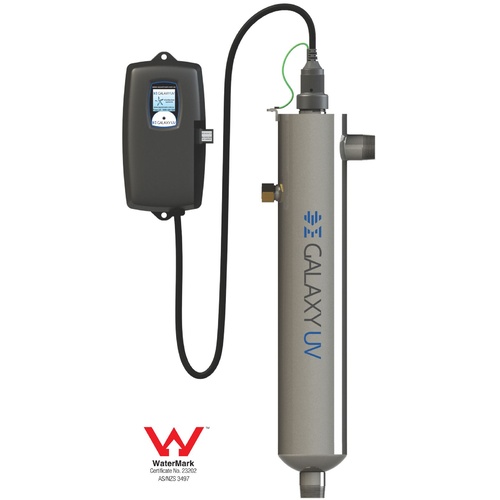

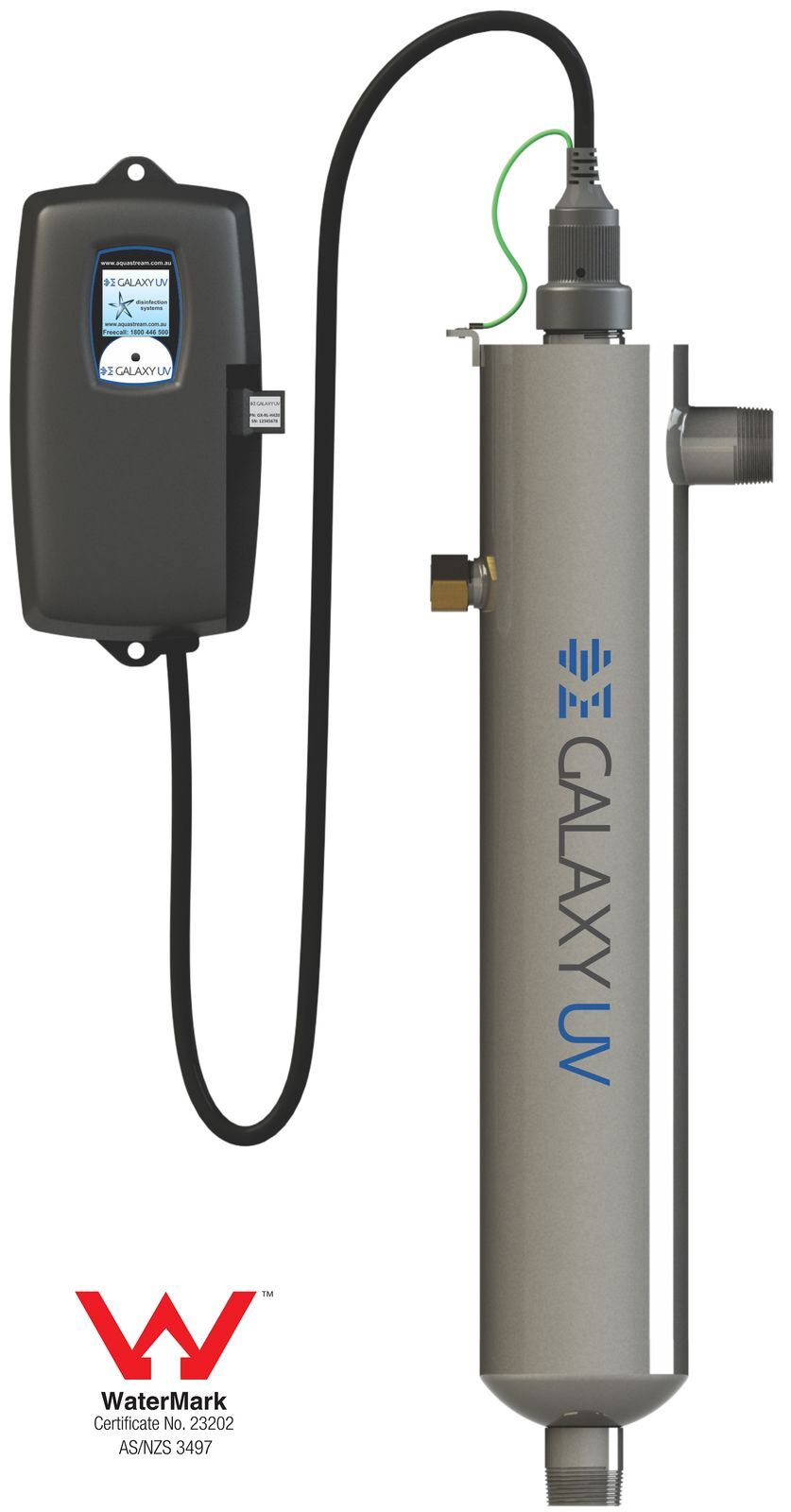

GALAXY PRO Series GX5-H38 Ultraviolet Disinfection System to treat flows from 26 Lpm through to 45 Lpm. Advanced colour display for easy system checking. Grade 316L Stainless Steel with 3/4" (20mm) Connections - Non Monitored

GALAXY PRO Series GX5-H38 UV Disinfection System utilises high-output lamps to ensure a compact footprint and treats flow rates from 26 Lpm through to 45 Lpm



The PRO Compact Series is designed to be compact, ideal for fitting into smaller spaces, built into water treatment cabinets and is only 51cm overall length including the lamp connection.

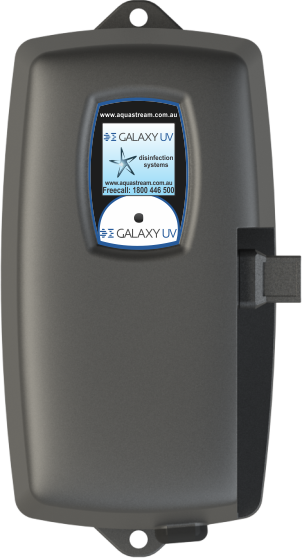

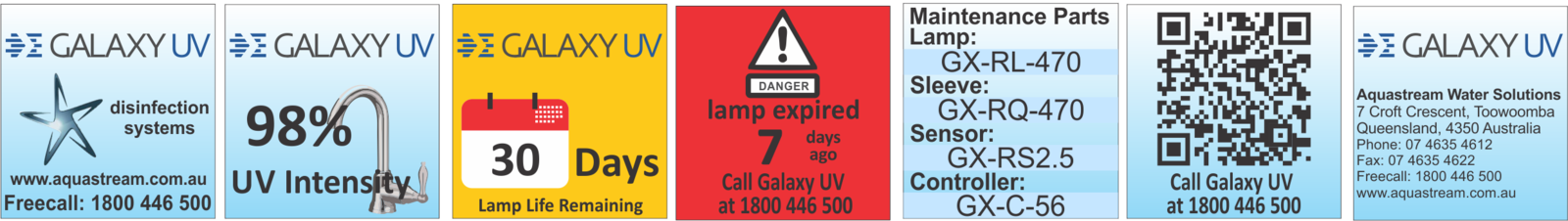

Powered by state-of-the-art 5.1 series controller with colour user interface for easy system checks, this constant current electronic power source is protected by a splash-proof case and incorporates an expandability port for future upgrades and options.

The robust 316L stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.

Reliable, proven, high-quality low pressure, high-output (LP-HO) UV Lamps are coated to ensure a consistent output over their 10,000 hour lamp life.



UV% Monitor

Some critical applications including food and beverage manufacturing may require real-time monitoring of the UV% output of the disinfection system. The GALAXY PRO-HO Series can be upgraded to a fully monitored system by installation of the correct UV Sensor module.

Simple to install, the sensor plugs into the IEP port on the controller and when powered up, the system will automatically recognise and calibrate the sensor.



Safety and BMS Connectivity Modules

The GALAXY PRO Series offers a wide range of modules for integrating the disinfection system into your building management system or treatment equipment. Visit the GALAXY Peripherals section to find out more on Safety Solenoids, 4-20mA output module, ethernet connectivity and more.



Order Code
Port Size
(Inch)
Flow Rate
@ 30mJ/cm
Flow Rate
@ 40mJ/cm2
Order Code
Order Code

UV-GX5-H38

3/4" Male

38

26

GX-RL-H330 GX-RQ-330

Reactor Dimensions: 8.9 x 41.8 cm

(UV-GX5-H38)

Product Enquiry Form Complete this form to email us your enquiry about UV-GX5-H38.





Be The First To Review This Product!

Help other Aquastream Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Advanced features and benefits include:

  • Axial flow 316 Stainless Steel reactor for optimum fluid dynamics
  • Compact space-saving design ideal for tight spaces
  • Low-pressure High-Output (LP-HO) coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
  • New 5.1 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
  • Infinite-Expandability-Port for future upgrades and options
  • Sensor port for future upgradeability - Includes visual glow plug
SKU UV-GX5-H38
Model # GX5-H38
Barcode # 9352837020197
Brand Galaxy UV
Shipping Weight 1.0000kg
Assembled Length 0.510m
Assembled Width 0.120m
