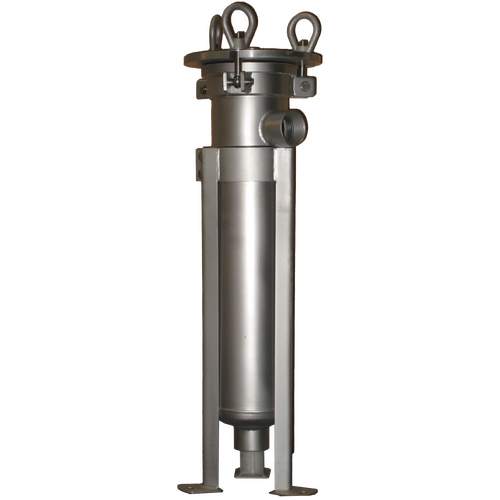

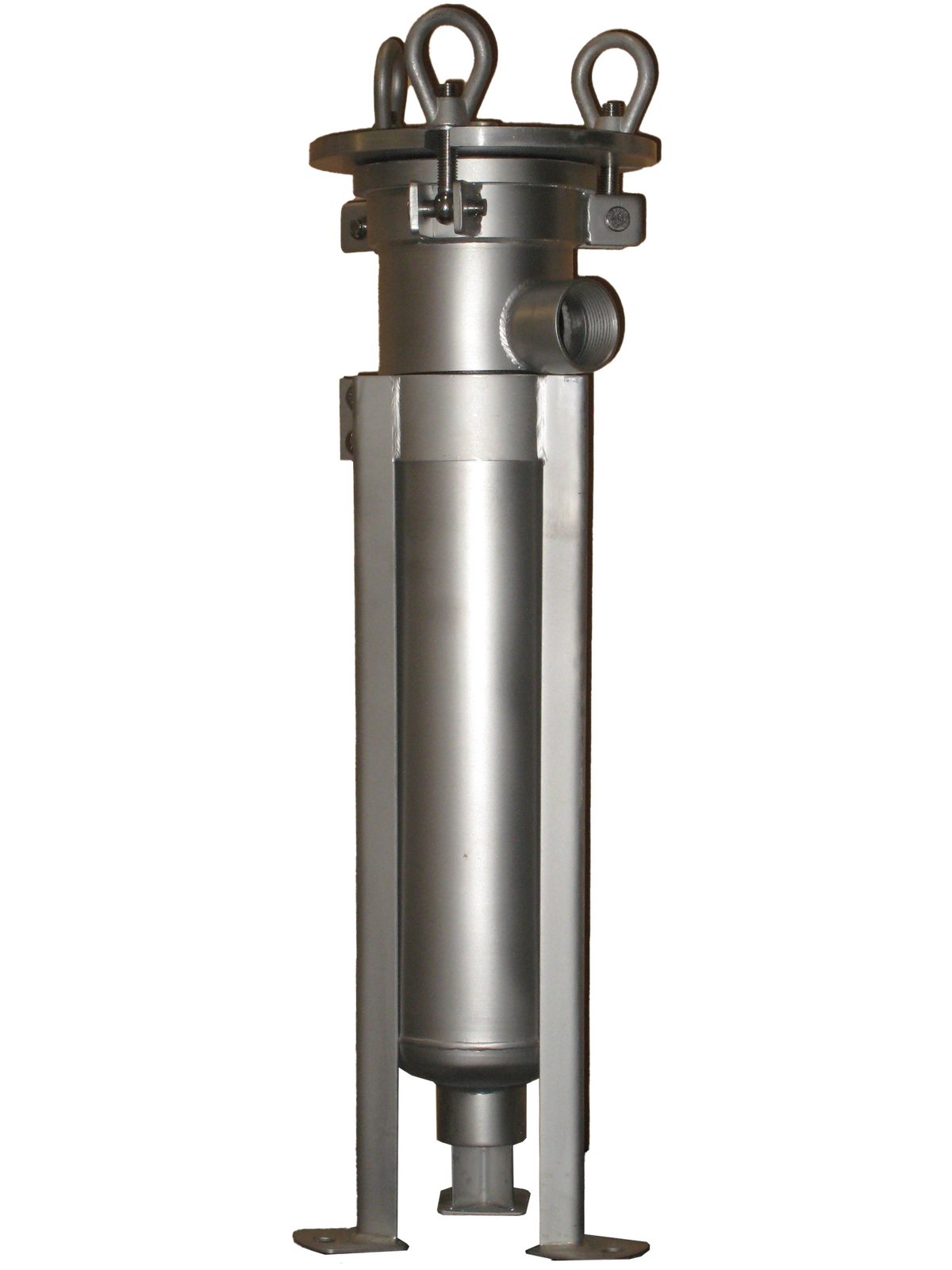

Inox Single Stainless Steel Size-4 Bag Housing

SKU: FSBH-4-40
Inox® Standard Size-4 bag filter housing for treating flows up to 1.6 L/sec or 100 LPM. Manufactured from Gr316 stainless incorporating V-band clamp closure and pressure rated to 10 Bar. Each system includes adjustable leg kit.

Features and Benefits

  • Heavy duty 316 stainless steel construction
  • 10 Bar working pressure
  • Flow rates up to 100 Lpm or 1.6 L/sec
  • Temperature rated to 120°C
  • Suits standard No-4 Fiter Bags
  • Gauge and drain ports
  • Adjustable legs included
Sale price
$1,020.80
In stock
Standard Shipping - Free
Road Delivery (2-5 Days)

Built for commercial and industrial applications, the Inox® Standar Size-4 stainless steel bag filter housing housing is ideal for bulk reduction of sediment, dirt and scale particulate and flow rates up to 1.6 Litres/sec

Constructed from heavy duty 316 stainless steel with protective polycoat finish, the Inox® Standard Size-4 bag housing incorporates the V-band clamp closure designed for easy bag replacement and is suitable for system pressure up to 10 Bar. A perforated stainless steel basket located inside the housing supports and protects the filter bag, ensuring optimum loading.

The side inlet and bottom outlet ports are 40mm BSP-M allowing for high flow rates at low pressure drop.

Each system includes sturdy stainless steel mounting legs for floor mounted applications.



This housing suits No-4 Size Filter Bags with a collar diameter of 104mm and lenght of 355mm

Features and Benefits

  • Heavy duty 316 stainless steel construction
  • 10 Bar working pressure
  • Flow rates up to 100 Lpm or 1.6 L/sec
  • Temperature rated to 120°C
  • Suits standard No-4 Fiter Bags
  • Gauge and drain ports
  • Adjustable legs included
SKU FSBH-4-40
Model # FSBH-4-40
Barcode # 9352837002810
Brand Uniflow
Shipping Weight 1.0000kg
Assembled Length 0.250m
Assembled Height 0.525m
Assembled Width 0.250m
