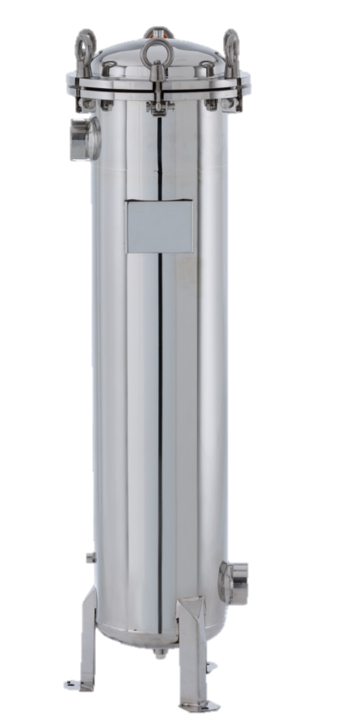

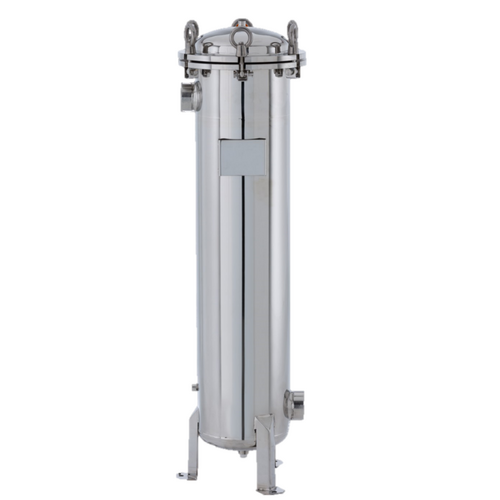

Uniflow 316 Stainless Steel Size 2 Single Bag Filter Housing

SKU: FPBH-316-2-50
Uniflow Premier Size 2 bag filter housing for treating flows up to 10 Litres/sec or 600 Litres/min. Manufactured from Grade 316L stainless incorporating swing-bolt closure and pressure rated to 10 Bar.

Features and Benefits

  • Heavy duty grade 316L stainless steel construction
  • 10 Bar working pressure
  • Temperature rated to 120°C
  • Suits standard #2 Fiter Bags (7" x 32")
Sale price
$2,940.00
In Stock
Australia Post - Free
Parcel Post (3-7 Business Days)
Standard Shipping - Free
Road Delivery (3-5 Business Days)

Built for commercial and industrial applications, the Uniflow Premier Size 2 316L stainless steel bag filter housing housing is ideal for bulk reduction of sediment, dirt and scale particulate and flow rates up to 10 Litres/sec

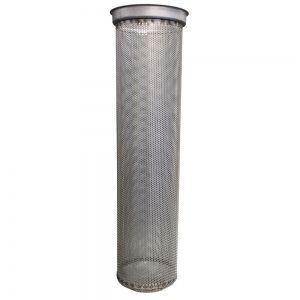

Constructed from heavy duty grade 316 Stainless Steel, the Premier Size 2 bag housing incorporates the heavy duty swing-bolt closure designed for easy bag replacement and is suitable for system pressure up to 10 Bar. A perforated stainless steel basket located inside the housing supports and protects the filter bag, ensuring optimum loading.

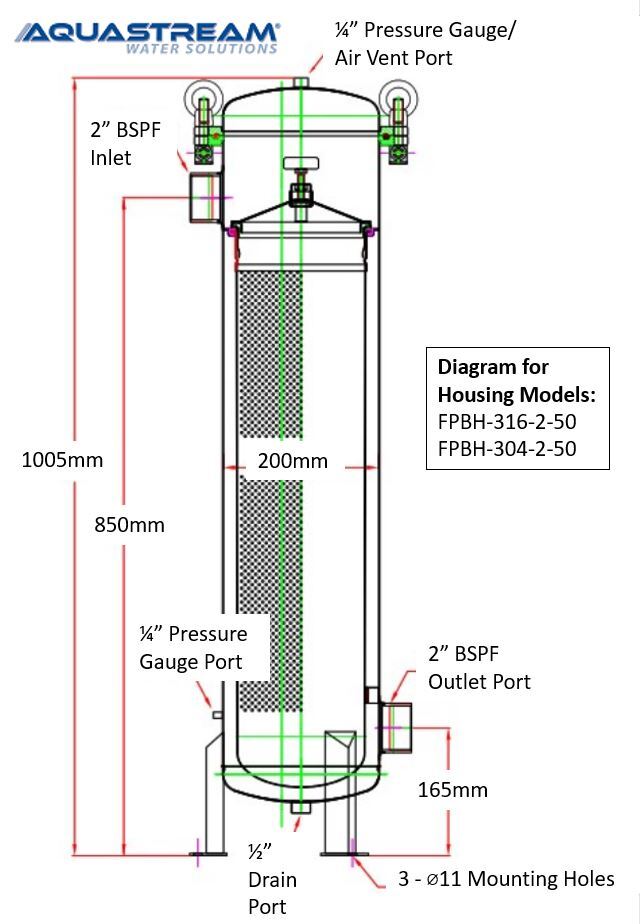

The side inlet and bottom outlet ports are 50mm BSP-M allowing for high flow rates at low pressure drop.

All Premier bag housing includes a 1/4" BSPM gauge port (located on the lid) and floor-mounting feet.

Each system includes a stainless steel bag-securing device to ensure bags are held securely in place, preventing filter bypass.



This housing suits No-2 Size Filter Bags with a collar diameter of 178mm and lenght of 810mm

Features and Benefits

  • Heavy duty grade 316L stainless steel construction
  • 10 Bar working pressure
  • Temperature rated to 120°C
  • Suits standard #2 Fiter Bags (7" x 32")
SKU FPBH-316-2-50
Model # FPBH-316-2-50
Brand Uniflow
Shipping Weight 35.0000kg
