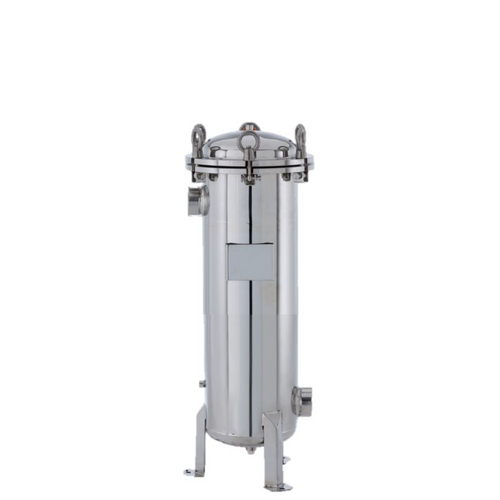

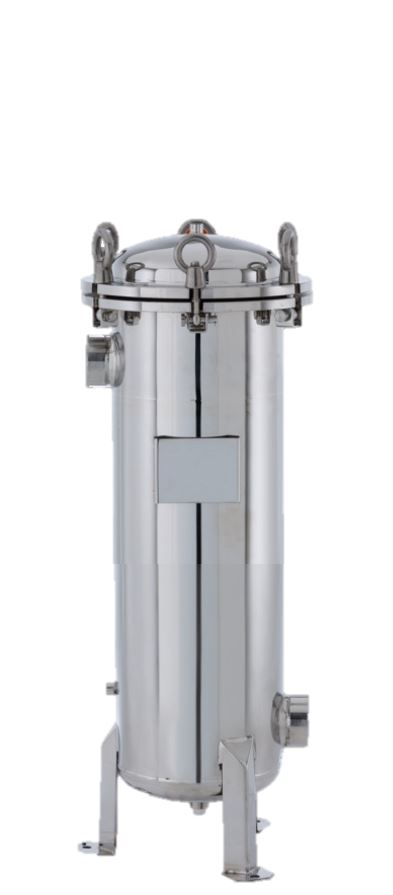

Uniflow 316 Stainless Steel Size 1 Single Bag Filter Housing

SKU: FPBH-316-1-50
Uniflow Premier Size 2 bag filter housing for treating flows up to 5 Litres/sec or 300 Litres/min. Manufactured from Grade 316L stainless incorporating swing-bolt closure and pressure rated to 10 Bar. Each system includes adjustable leg kit.

Features and Benefits

  • Heavy duty grade 316L stainless steel construction
  • 10 Bar working pressure
  • Temperature rated to 120°C
  • Suits standard #1 Fiter Bags (7" x 17")
  • Adjustable legs included
Sale price
$2,190.00
In stock
Standard Shipping - Free
Road Delivery (2-5 Days)

Built for commercial and industrial applications, the Uniflow Premier Size 1 (7" x 17") 316L stainless steel bag filter housing housing is ideal for bulk reduction of sediment, dirt and scale particulate and flow rates up to 10 Litres/sec

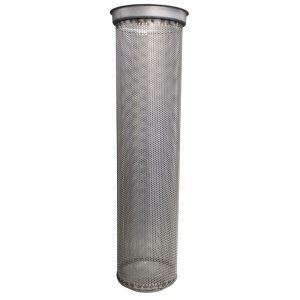

Constructed from heavy duty grade 316 Stainless Steel, the Premier Size 1 bag housing incorporates the heavy duty swing-bolt closure designed for easy bag replacement and is suitable for system pressure up to 10 Bar. A perforated stainless steel basket located inside the housing supports and protects the filter bag, ensuring optimum loading.

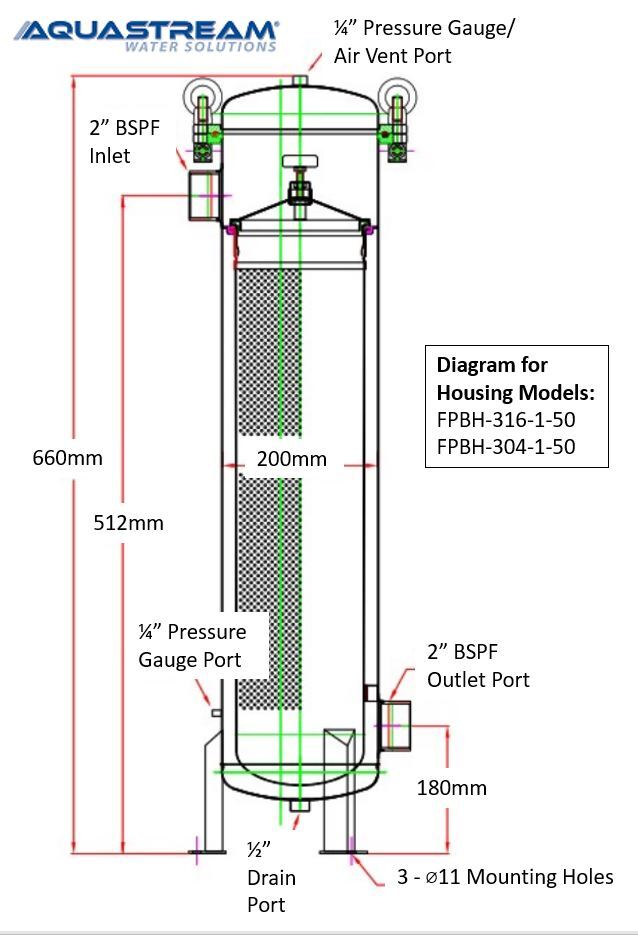

The side inlet and bottom outlet ports are 50mm BSP-M allowing for high flow rates at low pressure drop.

All Premier bag housing includes a 1/4" BSPM gauge port (located on the lid) and adjustable stainless steel legs as standard.

Each system includes a stainless steel bag-securing device to ensure bags are held securely in place, preventing filter bypass.



This housing suits Uniflow Size 1 Filter bag Elements with a collar diameter of 178mm and lenght of 810mm

Features and Benefits

  • Heavy duty grade 316L stainless steel construction
  • 10 Bar working pressure
  • Temperature rated to 120°C
  • Suits standard #1 Fiter Bags (7" x 17")
  • Adjustable legs included
SKU FPBH-316-1-50
Model # FPBH-316-1-50
Brand Uniflow
Shipping Weight 1.0000kg
Assembled Length 0.350m
Assembled Height 0.900m
Assembled Width 0.350m

Product Enquiry Form Complete this form to email us your enquiry about FPBH-316-1-50.
