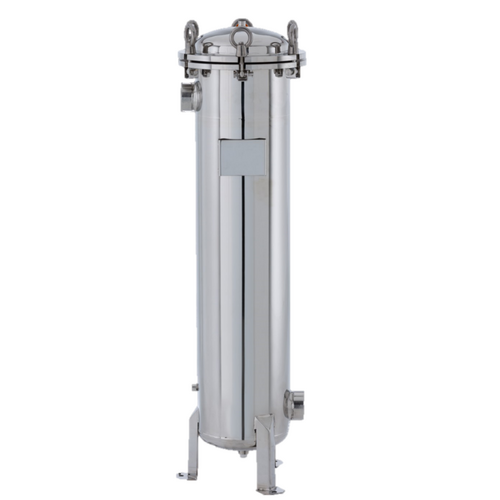

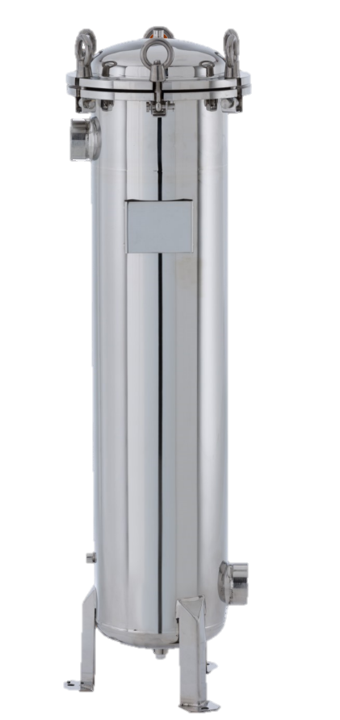

Uniflow 304 Stainless Steel Size 2 Single Bag Filter Housing

SKU: FPBH-304-2-50
Uniflow Premier Size 2 bag filter housing for treating flows up to 10 Litres/sec or 600 Litres/min. Manufactured from Grade 304 stainless incorporating swing-bolt closure and pressure rated to 10 Bar. Each system includes adjustable leg kit.

Features and Benefits

  • Heavy duty grade 304 stainless steel construction
  • 10 Bar working pressure
  • Temperature rated to 120°C
  • Suits standard #2 Fiter Bags
  • Adjustable legs included
Sale price
$2,197.80
In stock
Standard Shipping - Free
Road Delivery (2-5 Days)

Built for commercial and industrial applications, the Uniflow Premier Size 2 stainless steel bag filter housing housing is ideal for bulk reduction of sediment, dirt and scale particulate and flow rates up to 10 Litres/sec

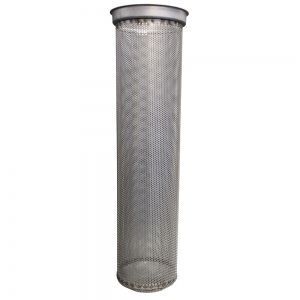

Constructed from heavy duty grade 304 Stainless Steel, the Premier Size 2 bag housing incorporates the heavy duty swing-bolt closure designed for easy bag replacement and is suitable for system pressure up to 10 Bar. A perforated stainless steel basket located inside the housing supports and protects the filter bag, ensuring optimum loading.

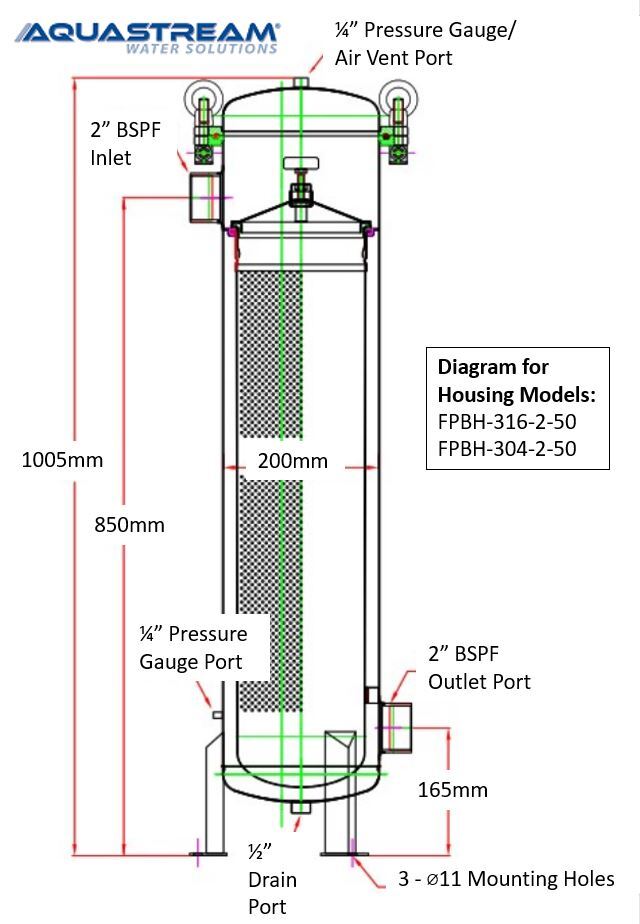

The side inlet and bottom outlet ports are 50mm BSP-M allowing for high flow rates at low pressure drop.

All Premier bag housing includes a 1/4" BSPM gauge port (located on the lid) and adjustable stainless steel legs as standard.

Each system includes a stainless steel bag-securing device to ensure bags are held securely in place, preventing filter bypass.



This housing suits No-2 Size Filter Bags with a collar diameter of 178mm and length of 810mm.

Features and Benefits

  • Heavy duty grade 304 stainless steel construction
  • 10 Bar working pressure
  • Temperature rated to 120°C
  • Suits standard #2 Fiter Bags
  • Adjustable legs included
SKU FPBH-304-2-50
Model # FPBH-2-50-AU
Brand Uniflow
Shipping Weight 1.0000kg
Assembled Length 0.350m
Assembled Height 1.150m
Assembled Width 0.350m
