Uniflow commercial rainwater treatment systems for treating flow rates from 0.75 to 1.5 L/second and are ideal for commercial, urban and residential applications.
This system provides exceptional multistage filtration performance as well as ultraviolet disinfection for 99.9% protection from waterbourne bacteria such as cryptosporidium and giardia.
This system is supplied in individual kit components and will require installation and some assembly on-site.

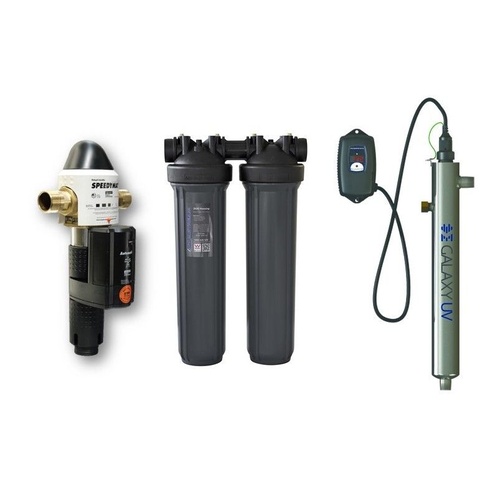

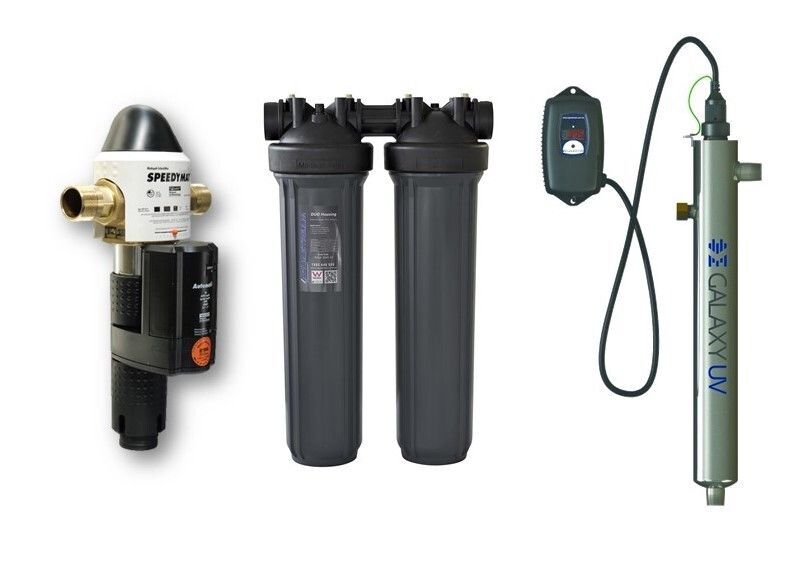

The below specification outlines the equipment that is included in this treatment package:
|
WRX-SYS-1.5
|
COMMERCIAL 0.75 - 1.5 Litre/sec Rainwater Treatment System
Automatic Screen Filtration, Dual-Stage Cartridge Filtration and High Output Ultraviolet Disinfection
|
|
First Stage - Automatic Backwashing Screen Filtration for reduction of course stones, dirt and particulate
- 100µm Stainless Steel Screen
- Automatic backwash via timer control
- 32mm (1-1/4") BSP-M connections
Installation Notes:
Install 1 x 32mm FJD-32-100 Automatic Backwash Screen Filter with bypass system for easy servicing with unions on inlet and outlet connections
|
1
|
FJD-32-100
|
|
Second Stage - Dual-Stage Cartridge Filtration for reduction of dirt, algea and fine sediment
- Heavy duty Polypropylene Consctruction
- 20µm Pleated Filtration - First Stage
- 5µm Pleated Filtration - Second Stage
- 25mm (1") BSP-F connections
- 690kPa Maximum System Pressure
Installation Notes:
Install 1 x Uniflow FSD-2045-1 Dual High-Flow Filter Housing System with pressure gauges and shutoff valves on inlet and outlet ports
Include 2 x 20µm Pleated Cartridges and 2 x 5µm Pleated Cartridges
|
1
|
FSD-2045-1
|
|
Final Stage - Advanced Ultraviolet Disinfection System for 99.9% protection from bacteria and cysts
- Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
- Low-pressure high output coated UV Lamps for consistent UV output
- 10,000 Lamp Life
- Splash-proof controller with Colour User Interface
- Upgradeable to a monitored UV system
- 25mm (1") BSP-M Connections
Installation Notes:
Install 1 x Luminor Blackcomb-HO LBH5-154 Ultraviolet Disinfection System with shutoff valves on the inlet and outlet ports.
|
1
|
LBH5-154
|
