1.5 - 3.0 L/second Commercial Rainwater Treatment System 690kPa

WRX-SYS-3.0

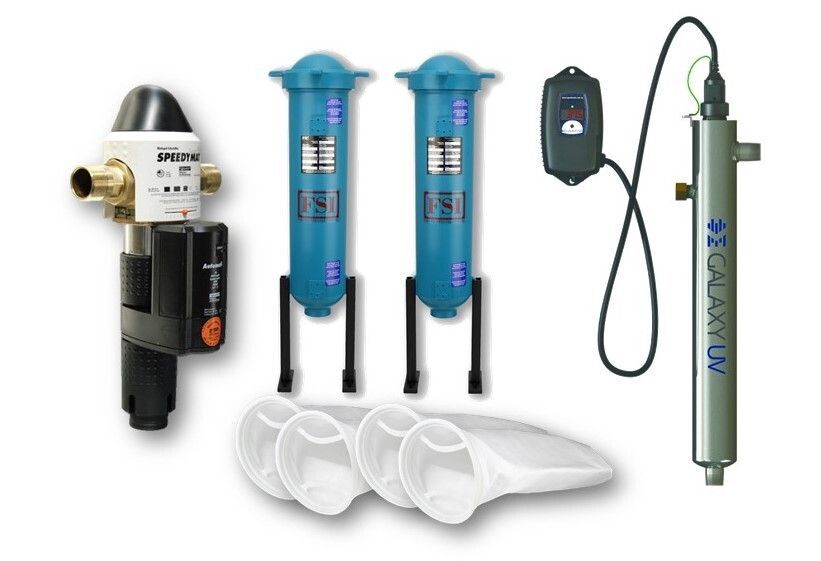

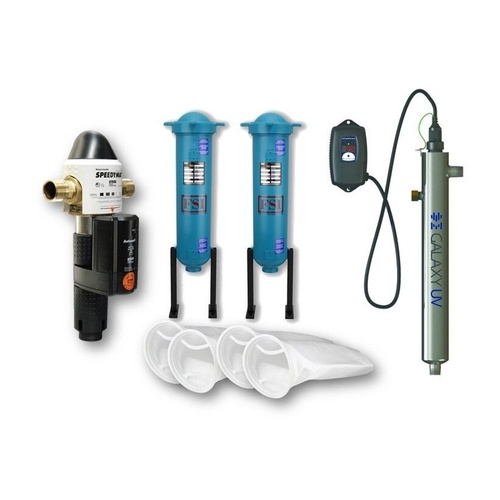

COMMERCIAL 1.5 - 3.0 Litre/sec Rainwater Treatment System

Automatic Screen Filtration, Dual-Stage Bag Filtration and High Output Ultraviolet Disinfection

First Stage - Automatic Backwashing Screen Filtration for reduction of course stones, dirt and particulate

• 100µm Stainless Steel Screen
• Automatic backwash via timer control
• 40mm (1-1/2") BSP-M connections

Installation Notes:
Install 1 x 40mm FJD-40-100 Automatic Backwash Screen Filter with bypass system for easy servicing with unions on inlet and outlet connections

1

FSA-40-100

Second Stage - Dual-Stage Bag Filtration for reduction of dirt, algea and fine sediment

• Heavy duty Polypropylene Bag Filter Systems
• 25µm polypropylene filter bag first stage
• 5µm polypropylene filter bag second stage
• 50mm (2") BSP-F connections
• Plastic support legs included
• 690kPa Maximum System Pressure

Installation Notes:
Install 2 x X100B Polypropylene Bag Filter Housings in series (one after the other) fitted with pressure gauges and shutoff valves on inlet and outlet ports

Include 2 x 25µm Filter Bags and 2 x 5µm Filter Bags

2

FBH-X100B

Final Stage - Advanced Ultraviolet Disinfection System for 99.9% protection from bacteria and cysts

• Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
• Low-pressure high output coated UV Lamps for consistent UV output
• 10,000 Lamp Life
• Splash-proof controller with Colour User Interface
• Upgradeable to a monitored UV system
• 40mm (1-1/2") BSP-M

Installation Notes:
Install 1 x Luminor Blackcomb-HO LBH5-404 Ultraviolet Disinfection System with shutoff valves on the inlet and outlet ports.

1

LBH5-404
