Luminor Ranier LR5-854 UV System 322 LPM

Luminor Ranier LR5-854 UV System 322 LPM

SKU: UV-LR-854
LUMINOR Ranier LR5-854 Series Ultraviolet Disinfection System to treat flows up to 325 Lpm. Advanced LED display for easy system checking. Grade 316L Stainless Steel with 2 Inch (50mm) Connections - Non Monitored

Advanced features and benefits include:

  • Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure Amalgam UV Lamps for consistent UV output throughout 20,000 hour lamp life
  • Series 5.0 Ranier Splash-Proof Controller with LED industrial user interface with diagnostics and warnings
  • Infinite-Expandability-Port for future upgrades and options
  • Sensor port for future upgradeability - Includes visual glow plug
Sale price
$7,818.80
In Stock
Australia Post - Free
Parcel Post (3-7 Business Days)
Standard Shipping - Free
Road Delivery (3-5 Business Days)

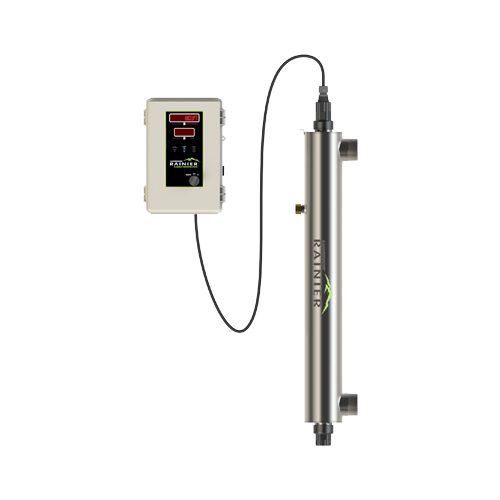

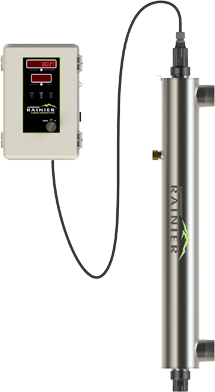

Ranier5.0 Series LR5-854 Industrial UV Disinfection System treats flow rates up to 322 Lpm



Powered by state-of-the-art 5.0 series controller with LED user interface for easy system checks, this constant current electronic power source is protected by a splash-proof industrial case and incorporates an expandability port for future upgrades and options.

The robust 316L stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.

Reliable, proven, high-quality low pressure amalgam (LP-AM) UV Lamps are coated to ensure a consistent output over their 12,000 hour lamp life.



Order Code
Port Size
(Inch)
Flow Rate
@ 30mJ/cm
Flow Rate
@ 16mJ/cm2

UV-LR5-854

2" Male

322

632*

* Based on flow velocity of 2.5m/s, flow rates are limited to 325 Lpm for 2" port size

Reactor Dimensions: 10 x 119 x 14 cm



DELIVERY TIME: On Application

Advanced features and benefits include:

  • Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure Amalgam UV Lamps for consistent UV output throughout 20,000 hour lamp life
  • Series 5.0 Ranier Splash-Proof Controller with LED industrial user interface with diagnostics and warnings
  • Infinite-Expandability-Port for future upgrades and options
  • Sensor port for future upgradeability - Includes visual glow plug
SKU UV-LR-854
Model # LR5-854
Barcode # 9352837020296
Brand Luminor
Shipping Weight 1.0000kg

Product Enquiry Form Complete this form to email us your enquiry about UV-LR-854.
