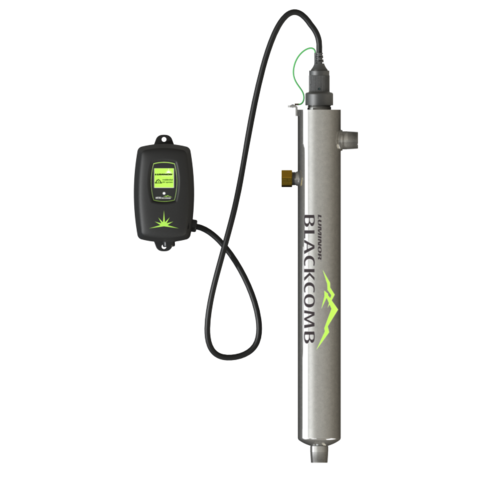

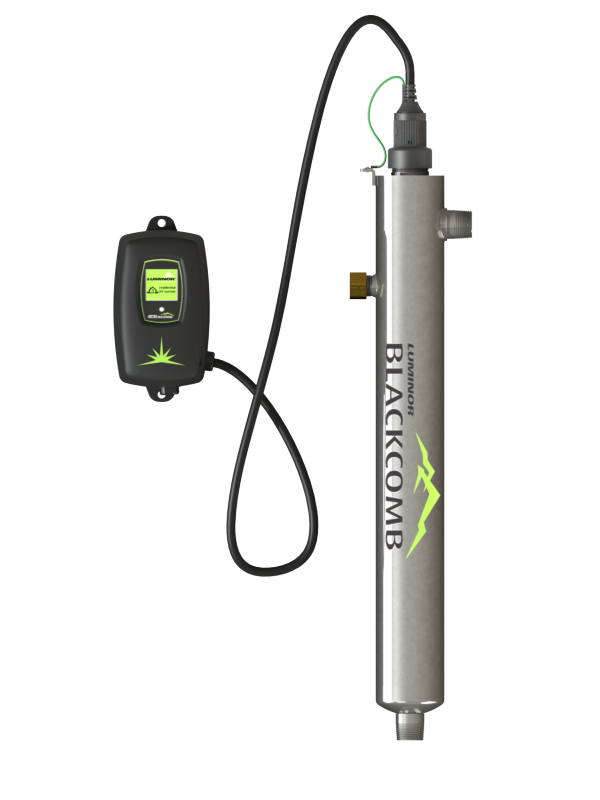

Luminor Blackcomb-HO LBH5-254 UV System 95 LPM

SKU: UV-LBH5-254

LUMINOR Blackcomb-HO LBH5-254 Series Ultraviolet Disinfection System to treat flows from 95 Lpm through to 180 Lpm. Advanced colour display for easy system checking. Grade 316L Stainless Steel with 1 Inch (25mm) Connections - Non Monitored

Advanced features and benefits include:

Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
Low-pressure, high output coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
5.0 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
Infinite-Expandability-Port for future upgrades and options
Sensor port for future upgradeability - Includes visual glow plug

$1,210.00

Sold out

Notify me

Recommended Extras
	Aquastream RL-600HO (Luminor Compatible) High Output Ultraviolet Lamp Replacement	$269.50
	Aquastream RQ-600 (Luminor Compatible) Quartz Thimble to suit 600mm Lamp	$172.00

Australia Post - Free

Parcel Post (3-7 Business Days)

Standard Shipping - Free

Road Delivery (3-5 Business Days)

Description

Blackcomb-HO5.0 Series LBH5-254 Commercial UV Disinfection System treats flow rates from 95 Lpm through to 180 Lpm.

Aquastream now stocks this UV in our Galaxy Pro Series GX5-H95 UV System

Visit Luminor Blackcomb UV Lamps and Spares for replacement UV lamps and sleeves

Powered by state-of-the-art 5.0 series controller with colour user interface for easy system checks, this constant current electronic power source is protected by a splash-proof case and incorporates an expandability port for future upgrades and options.

The robust 316L stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.

Reliable, proven, high-quality low pressure, high-output (LP-HO) UV Lamps are coated to ensure a consistent output over their 10,000 hour lamp life.

Order Code	Port Size (Inch)	Flow Rate @ 30mJ/cm	Flow Rate @ 16mJ/cm²	Order Code	Order Code
UV-LBH5-254	1" Male	95	180	RL-600HO	RQ-600

Reactor Dimensions: 8.9 x 68.3 cm

Features

Advanced features and benefits include:

Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
Low-pressure, high output coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
5.0 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
Infinite-Expandability-Port for future upgrades and options
Sensor port for future upgradeability - Includes visual glow plug

Specifications
