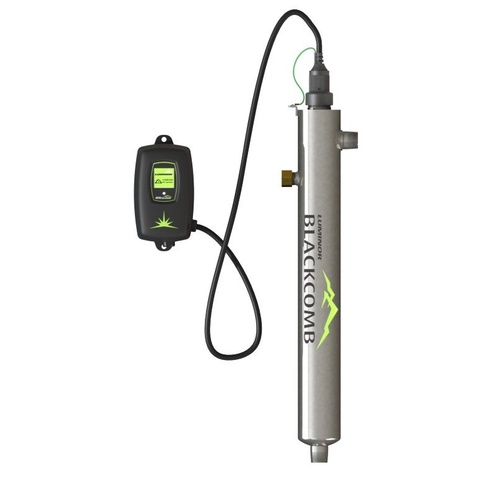

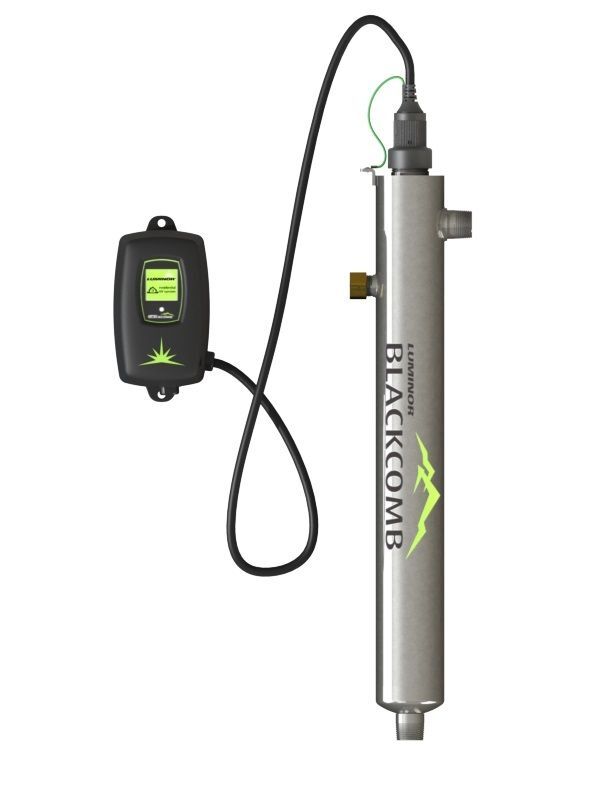

Luminor Blackcomb-HO LBH5-404 UV System 150 LPM

SKU: UV-LBH5-404
LUMINOR Blackcomb-HO LBH5-404 Series Ultraviolet Disinfection System to treat flows from 150 Lpm through to 290 Lpm. Advanced colour display for easy system checking. Grade 316L Stainless Steel with 1½ Inch (40mm) Connections - Non Monitored

Advanced features and benefits include:

  • Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure, high output coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
  • 5.0 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
  • Infinite-Expandability-Port for future upgrades and options
  • Sensor port for future upgradeability - Includes visual glow plug
Sale price
$2,260.50
Sold out
Recommended Extras
DISCONTINUED Luminor RL-950HO Ultraviolet Lamp Replacement $0.00 Out of stock
Luminor RQ-950 Quartz Domed to suit 950mm Lamp $251.90
Standard Shipping - Free
Road Delivery (2-5 Days)

Blackcomb-HO5.0 Series LBH5-404 Commercial UV Disinfection System treats flow rates from 150 Lpm through to 290 Lpm.

Aquastream now stocks this UV in our Galaxy Pro Series GX5-H150 UV System

Visit Luminor Blackcomb UV Lamps and Spares for replacement UV lamps and sleeves



Powered by state-of-the-art 5.0 series controller with colour user interface for easy system checks, this constant current electronic power source is protected by a splash-proof case and incorporates an expandability port for future upgrades and options.

The robust 316L stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.

Reliable, proven, high-quality low pressure, high-output (LP-HO) UV Lamps are coated to ensure a consistent output over their 10,000 hour lamp life.



Order Code
Port Size
(Inch)
Flow Rate
@ 30mJ/cm
Flow Rate
@ 16mJ/cm2
UV Lamp
Quartz

UV-LBH5-404

1½" Male

150

290

RL-950HO RQ-950

Reactor Dimensions: 8.9 x 103.4 cm



Advanced features and benefits include:

  • Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure, high output coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
  • 5.0 Series Splash-Proof Controller with Colour User Interface with diagnostics and warnings
  • Infinite-Expandability-Port for future upgrades and options
  • Sensor port for future upgradeability - Includes visual glow plug
SKU UV-LBH5-404
Model # LBH5-404
Barcode # 9352837020289
Brand Luminor
Shipping Weight 1.0000kg
